| Part: | Chiksan Cementing Hose | Size: | 1", 1-1/2", 2", 3", 4" |
|---|---|---|---|
| WECO FIG NO.: | 602, 1502 | Pressure: | 6000psi To 15000PSI |
| Swivel Joint Styles: | Style 50, Style 10 | Length: | 10ft, 12ft, 9.5ft Or Customized |
| Style: | Short Radius, Short Radius | Material: | Alloy Steel(Integral Forged) |
| Standard: | API Spec 16C, API 6A, NACE MR0175, ISO 9001, ISO14001 Etc |

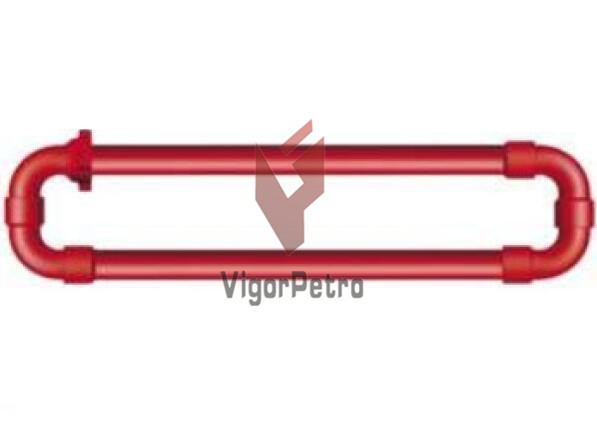

Chiksan Cementing and Circulating hose Loop always including Short Radius Style, Long Radius Style and Integral Style, which are used for high pressure well service applications, such as high pressure discharge lines, water supply lines, well test lines, and cementing and circulating lines.
Chiksan cementing and circulating hoses can handle a complete range of standard and sour gas fluids at cold working pressures up to 15,000psi with sizes of 1-1/2",2",3",4".

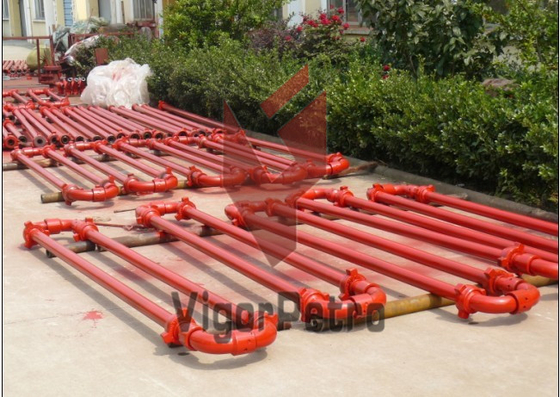

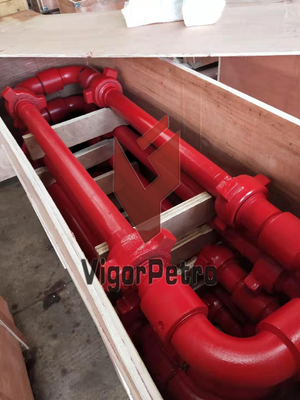

The hose loops consist of swivel joints and straight pipes, and feature excellent flexibility, stability, fast installation, and simple dismantling. Hose loops are assembled by swivel joint, hammer union and pup joint. They can be easily connected to pumps or other pipes with Fig 1502, Fig 1002 and Fig 602 hammer unions. These Cementing & Circulating hoses are made in steel to meet ASTM/AISI standards, are rugged, fold up easily and quickly for transportation. These are specially heat treated to get the desired hardness to suit various applications.
Detailed Specifications:
| Product Name: | API 16C High Pressure Chiksan Cementing and Circulating hose Loop |
| Size Range | 1", 1-1/2", 2", 3", 4" |
| Availabe Style | Long Radius, Short Radius, Integral |
| Standard Lengths of Hoses: | 9.5/10/12 feet or customized |
| Swivel Joints Style: | Always Style 10 and Style 50. |
| Standards: | API Spec 16C, API 6A, NACE MR0175, ISO 9001 |
| Working Pressure: | 6000 PSI to 15000 PSI |
| OEM Equal | FMC Chiksan type, SPM, and ANSON. |
| Performance Requirement: | PR1, PR2 |
| Product Specification Level: | PSL3 |
| Service: | Standard and Sour Gas service is available |
Data Sheet:
| Nominal Size | Service | CWP. (psi) | Fig. NO. | Swivel Joint style #1/#2 |
Length in extended condition (ft) | ||
| 10 | 12 | 9.5 | |||||
| 1" | Standard | 6,000 | 602 | 50/50 | Y | Y | - |
| 1.5" | Standard | 6,000 | 602 | 50/50 | Y | Y | - |
| 1.5" | Standard | 10,000 | 1502 | 50/50 | Y | Y | - |
| Standard | 15,000 | 1502 | 50/10 | - | - | Y | |
| 2" | Standard | 6,000 | 602 | 50/50 | Y | Y | - |
| 2" | Standard | 10,000 | 1502 | 50/50 | Y | Y | - |
| Standard | 15,000 | 1502 | 50/10 | - | - | Y | |
| 2" | Sour Gas | 10,000 | 1502 | 50/10 | - | - | Y |
| 3" | Standard | 6,000 | 602 | 50/50 | Y | Y | - |
