Product Details:
Payment & Shipping Terms:
|
Size: | 2" | Pressure Rating: | 5000PSI |
---|---|---|---|
Material: | ALLOY STEEL | Connection: | Butt Weld |
Std: | API 6A, API 16A | Service: | Standard |

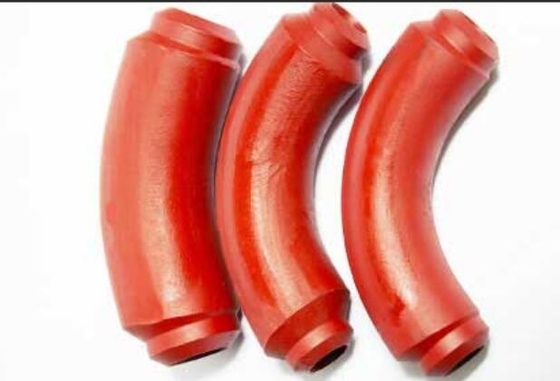

Description: ELLBOW 2" X 5 M, 90-DEG. L.S. BUTT WELD 22-L-90 OTECO OEM
ViIGORPETRO flow high pressure fittings and manifolds fittings are manufactured from ASTM Carbon Steel castings to AISI Alloy Steel Forging. This assures excellent ductility and weldability.
Feature:
Manifold Fittings Description Table:
Size | Description | Descriptive No. | Approx. Wt. Lbs |
2” |
Long sweep full flow tee Long sweep tee 90° long sweep Ell 45° long sweep Ell Long sweep Y |
222-T 222-LST 22-L-90 22-L-45 222-Y |
51 60 30 12 51 |
3” |
Long sweep full flow tee Long sweep tee 160° standpipe gooseneck with top outlet 90° long sweep Ell 45° long sweep Ell |
333-T 333-LST 333-GTO 333-L-90 33-L-45 |
97 80 105 67 20 |
4” |
Long sweep full flow tee Long sweep tee 160° standpipe gooseneck 180° standpipe gooseneck 160° standpipe gooseneck with top outlet 90° long sweep Ell 45° long sweep Ell 90° long sweep Ell with 2” outlet Long sweep Y Full flow cross |
444-T 444-LST 44-G6 44-G8 444-GTO 44-L-90 44-L-45 424-L-90 444-Y 4444-X |
140 115 109 129 142 87 55 95 162 206 |
5” |
Long sweep full flow tee Long sweep tee 160° standpipe gooseneck 180° standpipe gooseneck 160° standpipe gooseneck with top outlet 90° long sweep Ell 45° long sweep Ell 90° long sweep Ell with 2” outlet Full flow cross |
555-T 555-LST 55-G6 55-G8 555-GTO 55-L-90 55-L-45 525-L-90 5555-X |
200 161 200 220 220 116 74 140 515 |
Key Words: Hammer Union, Butt Weld SCH40, SCH80, XXS, Line Pipe Thread End, Blind, Hammer Union Figure 50 (500 psi cwp), Hammer Union Figure 100 (1,000 psi cwp), Hammer Union Figure 200 (2,000 psi cwp), Hammer Union Figure 206 (2,000 psi cwp), Hammer Union Figure 207 (2,000 psi cwp), Hammer Union Figure 600 (6,000 psi cwp), Hammer Union Figure 602 (6,000 psi cwp), Hammer Union Figure 1002 (10,000 psi cwp), Hammer Union Figure 1003 (10,000 psi cwp), Hammer Union Figure 1004 (10,000 psi cwp), Hammer Union Figure 1502 (15,000 psi cwp), Hammer Union Figure 2002 (20,000 psi cwp), Hammer Union Figure 2202 (15,000 psi cwp).
