2" Manual Choke Valve, 1502 Weco Union Male x Female, Built As Per API 6A, c/w COC

China 2" Manual Choke Valve, 1502 Weco Union Male x Female, Built As Per API 6A, c/w COC supplier
2" Manual Choke Valve, 1502 Weco Union Male x Female, Built As Per API 6A, c/w COC supplier

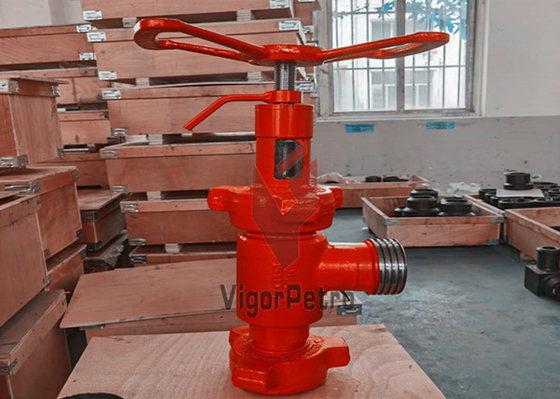

Large Image :  2" Manual Choke Valve, 1502 Weco Union Male x Female, Built As Per API 6A, c/w COC

Product Details:

Place of Origin: CHINA
Brand Name: VigorPetro
Certification: API6A API16A ISO 9001
Model Number: 2" 1502 WECO

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 20-40 DAYS
Payment Terms: T/T
Supply Ability: 500 PCS/MONTH
Contact Now
Detailed Product Description
Product Name: CHOKE VALVE 2 1502 Size Range: 2" 1502 WECO
Pressure Rating: 15000 PSI Material Class: EE
End Connection: 2" WECO 1502 Temp Class: PU, LU, KU, PX
PSL: PSL1-PSL4 PR: PR1-PR2

2" Manual Choke Valve, 1502 Weco Union Male x Female, Built As Per API 6A, c/w COC



2" Manual Choke Valve, 1502 Weco Union Male x Female, Built As Per API 6A, c/w COC



Data sheet: 2" Manual Choke Valve, 1502 Weco Union Male x Female, Built As Per API 6A, c/w COC





API 6A Type H2 Adjustable and Positive / Fixed Choke Valve (Needle Choke) - for Wellhead and Manifolds



VIGORPETRO Type H2 choke valves are improved from Cameron H2 series which is the major component of Wellhead Christmas tree and Manifold, mainly used for controlling the production rate of an oil well from working pressure 2,000 psi to 20,000 psi.

The choke valve can be classified as H2 Type Adjustable Choke Valve and H2 Type Positive(Fixed) Choke Valve. The adjustable choke valve is designed to adjust the effective area available, for the flow to control the production rate, through rotating the hand wheel. These adjustable chokes are designed, manufactured and tested in accordance with API Spec. 6A suitable for well testing, high pressure drilling and production accompanied with sour gas or / and sand. We can also provide H2 Type Choke Valve with ASME Standard.

The Choke valve can be both Manual Operated and Hydraulic Operated.



2" Manual Choke Valve, 1502 Weco Union Male x Female, Built As Per API 6A, c/w COC                    2" Manual Choke Valve, 1502 Weco Union Male x Female, Built As Per API 6A, c/w COC                   2" Manual Choke Valve, 1502 Weco Union Male x Female, Built As Per API 6A, c/w COC

H2 Type Adjustable Manual Choke     H2 Type Positive (Fixed) Choke         H2 Type Hydraulic Choke



Features

  • Integral and forged valve body with qualified mechanical properties
  • Long life and low maintenance
  • Body to bonnet contact behind the O-ring seal eliminates bonnet seal extrusion
  • A locking device is set on stem for adjustable choke
  • Ideal for many flow regulating services and easily converted to a positive choke
  • he stem of adjustable choke is made of high strength alloy steel. The material has the feature of abrasion resistance, erosion resistance and reliable serviceability
  • The valve and seat can be removed by hand, without special tools and without removal of the valve body from the line, by simply removing the bonnet
  • Drive has manual, hydraulic and gear transmission forms
  • Connections have flange, thread and hub

H2 Adjustable and Positive choke Specifications

  • ASME Nominal Size: 2", 3", 4", 6", 8", 10"
  • API Nominal Size: 2-1/16", 2-9/16", 3-1/8”, 3-1/16", 4-1/16", 5-1/8", 7-1/16", 9"
  • ASME Pressure Rating: 600#, 900#, 1500#, 2500#, 4500#
  • API Pressure Rating: 2000 PSI, 3000 PSI, 5000 PSI, 10000 PSI, 15000 PSI CWP
  • Max orifice: 1"-3".

  • Material Class: AA, BB, CC DD, EE, FF, HH
  • Temp Rating: -59°to 177°C(-75°to 350°F)
  • API Temperature Classifications: K,L,N,P,R,S,T,U,V,X,Y
  • Performance Requirement: PR1, PR2
  • Product Specification Level: PSL1, PSL2, PSL3, PSL3G, PSL4
  • End Connection: ASME RF Flanged, API RF/RTJ Flanged, Threaded, Hammer Union
  • Design Standards: API Spec 6A, API 16C, ASME, ANSI, NACE MR0175
  • Working Medium: Petroleum, Natural Gas, Water, Mud, Gas containing H2S, CO2



Typical Industry Applications:

  • Oil Production Start-Up/ Shut-Down
  • Gas & Condensate Production
  • Gas Lift
  • Well Testing
  • Choke & Kill Manifolds
  • Multi-Phase Flows
  • Pump Discharge
  • Fracturing Clean-up
  • FlaringAdditional

VigorPetro is a professional manufacturer of API 6A Wellhead Equipment, API6A Gate Valves, Choke Valves, Check Valve, Ball Valves, DEMCO Gate Valve, Plug Valves, Blowout Preventers(BOPs), Choke & Kill Manifolds, Flowline products, etc. Aside from the H2 Style Choke Valves, we also offer the External Sleeve Chokes, Cage & Plug Type Choke, Angle Type Choke and Drilling Choke with Hydrualic Actuator.
