N-LINE CHOKE VALVE ADJUSTABLE, 3-1/8 IN, API CLASS 5000, STUDDED CONNECTION, AISI 4130 CAGE WITH EXTERNAL SLEEVE

N-LINE CHOKE VALVE ADJUSTABLE, 3-1/8 IN, API CLASS 5000, STUDDED CONNECTION, AISI 4130 CAGE WITH EXTERNAL SLEEVE

Description:

VALVE,CHOKE, ADJUSTABLE, 3-1/8 IN, API CLASS 5000, STUDDED CONNECTION, ALLOY STEEL AISI 4130 BODY, NACE MR0175, SOUR GAS SERVICE, API 6A, EE, PU. PART NUMBER: B73A5SB3A5SS72P BODY: SPECIAL DESIGN TO MATCH FMC BEAN BOX ASSY. 25-691-110E BONNET TYPE: BOLTED BONNET SEAL: TEFLON SPRING ENERGISED LIP SEAL NAME PLATE: STAINLESS STEEL TRIM TYPE: CAGE WITH EXTERNAL SLEEVE, FLOW CHARACTERISTIC: EQUAL PERCENT, SHUT OFF CLASS: CLASS V PER ANSI FCI 70-2 TRIM SIZE: 96/64 IN FLOW COEFFICIENT Cv: 37 TRIM MATERIAL: ULTRAFINE SUBMICRON TUNGSTEN CARBIDE WITH 5% ALLOY BINDER, 17-4 PH SS WITH MICROGRAIN TUNGSTEN CARBIDE LINER (SLEEVE) MATERIAL STEM: UNS 17400 STAINLESS STEEL STATIC SEALS MATERIAL: PTFE / VITON STEM PACKING/BALANCE SEALS: SPRING ENEGNISED LIP SEALS, PTFE / ELGILOY ACTUATION: MANUAL HANDWHEEL POSITION INDICATOR: MICROMETER TYPE INDICATOR IN 64" DIVISION OTHER: CARBIDE GRADE QUOTED (PUC-5S) QUALITY PLAN: API Q-1, 6A PAINTING: VALVE TO BE PAINTED WITH MANUFACTURERS STANDARD PAINT

API6A ASME High Pressure Plug & Cage Control Choke Valve (Angle Choke Valves)

VIGORPETRO plug & cage control choke uses the plug as the controlling element, and throttles the flow on the internal diameter of the ported cage. The ports in the cage are sized and arranged to give the most appropriate combination of controllability and flow capacity for each application.

Plug & cage chokes also are constructed with a solid tungsten carbide plug tip and inner cage for extended resistance to erosion. It may further be configured with a solid tungsten carbide wear sleeve in the outlet of the body to provide enhanced protection in sandy service.This trim also includes a thick metal outer cage to ensure maximum protection against solid impacts from debris in the flow.

Plug & cage control choke features

1. Tungsten carbide plug
2. Solid tungsten carbide cage offers better wear resistance in erosive conditions
3. Metal body-to-bonnet gasket for high pressure containment
4. Few side loading and vibration with Fully guided plug
5. Self-flushing, pressure-balanced ports reduce stem loads
6. Lower operating torque with Heavy-duty thrust bearings
7. Pressure-balanced seals reduce operating forces and enabling greater ease of adjustment
8. Outer metal cage avoids impact damage

Plug & cage control choke Specifications

• ASME Nominal Size: 2", 3", 4", 6", 8", 10"
• API Nominal Size: 2-1/16", 2-9/16", 3-1/8”, 3-1/16", 4-1/16", 5-1/8", 7-1/16", 9"
• ASME Pressure Rating: 600#, 900#, 1500#, 2500#, 4500#
• API Pressure Rating: 2000 PSI, 3000 PSI, 5000 PSI, 10000 PSI, 15000 PSI CWP
• Material Class: AA, BB, CC DD, EE, FF, HH
• Temp Rating: -59°to 177°C(-75°to 350°F)
• API Temperature Classifications: K,L,N,P,R,S,T,U,V,X,Y
• Performance Requirement: PR1, PR2
• Product Specification Level: PSL1, PSL2, PSL3, PSL3G, PSL4
• End Connection: ASME RF Flanged, API RF/RTJ Flanged, Threaded, Hammer Union
• Design Standards: API Spec 6A, API 16C, ASME, ANSI, NACE MR0175
• Working Medium: Petroleum, Natural Gas, Water, Mud, Gas containing H2S, CO2

Typical Industry Applications:

• Oil Production Start-Up/ Shut-Down
• Gas & Condensate Production
• Gas Lift
• Well Testing
• Choke & Kill Manifolds
• Multi-Phase Flows
• Pump Discharge
• Fracturing Clean-up
• FlaringAdditional

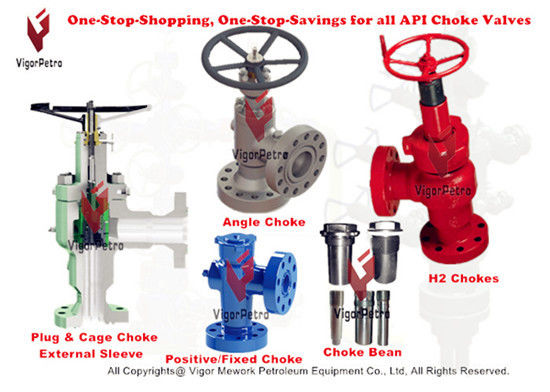

VigorPetro is a professional manufacturer of API 6A Wellhead Equipment, API6A Gate Valves, Choke Valves, Check Valve, Ball Valves, DEMCO Gate Valve,  Plug Valves, Blowout Preventers(BOPs), Choke & Kill Manifolds, Flowline products, etc. Aside from the Cage & Plug Chokes, we also offer the External Sleeve Type Choke, Angle Type Choke, Positive / Fixed Choke, Drilling Choke with Hydrualic Actuator and H2 Type Chokes.
