|Product Name:||Adjustable Choke||ASME Flange Size:||4"|
|End Connection:||Flanged||Temp Class:||U|
|Standard:||ASME, API 6A|
Description: Valve, Choke, 4" AISI 4130, CL 1500, FLANGED RTJ

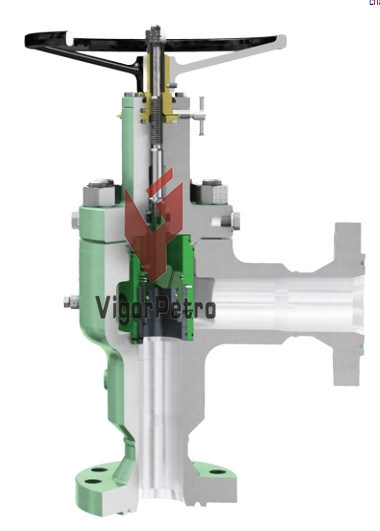

VIGORPETRO plug & cage control choke uses the plug as the controlling element, and throttles the flow on the internal diameter of the ported cage. The ports in the cage are sized and arranged to give the most appropriate combination of controllability and flow capacity for each application.
Plug & cage chokes also are constructed with a solid tungsten carbide plug tip and inner cage for extended resistance to erosion. It may further be configured with a solid tungsten carbide wear sleeve in the outlet of the body to provide enhanced protection in sandy service.This trim also includes a thick metal outer cage to ensure maximum protection against solid impacts from debris in the flow.
Plug & cage control choke features
Plug & cage control choke Specifications
Typical Industry Applications:
VigorPetro is a professional manufacturer of API 6A Wellhead Equipment, API6A Gate Valves, Choke Valves, Check Valve, Ball Valves, DEMCO Gate Valve, Plug Valves, Blowout Preventers(BOPs), Choke & Kill Manifolds, Flowline products, etc. Aside from the Cage & Plug Chokes, we also offer the External Sleeve Type Choke, Angle Type Choke, Positive / Fixed Choke, Drilling Choke with Hydrualic Actuator and H2 Type Chokes.
