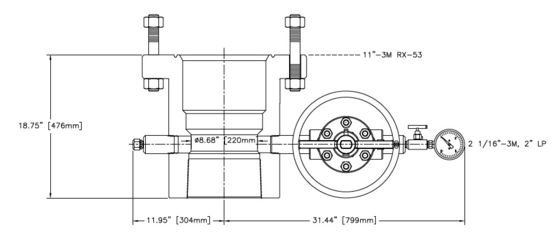

CASING HEAD HOUSING KSB-2, 9-5/8" BTC X 11" 3M FLANGE TOP

CASING HEAD HOUSING KSB-2, 9-5/8" BTC X 11" 3M FLANGE TOP

Description: CASING HEAD HOUSING ASSEMBLY, 9-5/8" BTC X 11" 3M FLANGE TO, INCLUDING:

CASING HEAD, KSB-2
- TOP CONNECTION: 11" 3,000 PSI FLANGE
- BOTTOM CONNECTION: 9 5/8" BTC BOX
- SIDE OUTLETS: TWO (2) 2" LP BOX
- API 6A 21ST EDITION
- MATERIAL CLASS: EE
- TEMPERATURE: U
- PSL: 2
- PR: 2

GATE VALVE ASSEMBLY,
- 2-1/16" 5,000 PSI
- BI-DIRECTIONAL
- 2" LP BOX ENDS
- HANDWHEEL OPERATED
- HANDWHEEL INCLUDED
- BOLTING PER API 20E BSL1 (ZINC)
- API 6A 21ST EDITION
- MATERIAL CLASS: DD
- TEMPERATURE CLASS: U
- PSL: 2
- PR: 2F

NIPPLE, 2 3/8 XXS, 2" LP THD X 6" LONG CARBON STEEL

BULL PLUG, 2 LP X 4 LG WITH 1/2" NPT TAPPED MATERIAL CLASS : DD API 6A 21ST EDITION

FITTING, TEST PORT GREASE, 1/2 NPT, FREE FLOW TYPE, SS316L, H2S PSL: - TEMP: L-X MATL. CLASS: FF

NEEDLE VALVE, STRAIGHT 1/2" NPT MALE X FEMALE, 10M STAINLESS STEEL

PRESSURE GAUGE, 0-3000 PSI, 4" FACE, SS CASE AND STEM, W/ 1/2 NPT MALE BTM CONN

RING GASKET, RX-53, ALLOY / CARBON STEEL FOR 11" 3,000 PSI FLANGE CONNECTION

STUD W/TWO NUT, 1-3/8 8UN X 10.000 LG, B7 STUD & A194 GR 2H NUT, ZINC, 20E, BSL1 FOR 11" 3,000 PSI FLANGE CONNECTION

BLASTING AND OFFSHORE PROTECTIVE COATING PER WEIR PAINTING SPECIFICATION APSC-001 - FINAL COAT COLOUR: TBA

BASE PLATE, SPLIT, ASSY, 22.00" OD X 11.25 ID, W/ 6 GUSSETS

CASING HANGER ASSEMBLY, TYPE KSB- 2
- 11" X 7" OD CASING
- AUTOMATIC SLIP AND SEAL
- WITH NITRILE PACKING
- API 6A 21ST EDITION
- MATERIAL CLASS: AA/BB
- TEMPERATURE CLASS: U
- PSL 2 PR2

CASING HANGER ASSEMBLY, TYPE KSB- 1
- 11" X 7" OD CASING
- API 6A 21ST EDITION
- MATERIAL CLASS: AA/BB
- TEMPERATURE CLASS: U
- PSL 2 PR2

PACKOFF ASSY, TYPE H, W/ NITRILE SEALS F/ KSB-1 CASING SLIPS 11" X 7"

TUBING SPOOL, 11" 3M FLANGE BOTTOM X 11" 3M FLANGE TOP

TUBING SPOOL, 11" 3M FLANGE BOTTOM X 11" 3M FLANGE TOP, INCLUDING:

TUBING SPOOL ASSY, KSB TYPE
- TOP CONNECTION: 11" 3,000 PSI FLANGE
- BOTTOM CONNECTION: 11" 3,000 PSI FLANGE
- SIDE OUTLETS: TWO (2) 2-1/16" 3,000 API STUDDED OUTLETS WITH THREADS FOR 1.900" NOM VALVE REMOVAL PLUG
- C/W TWO O-RINGS F/ 7" CASING
- C/W FULL SET INC 718 LOCKDOWN SCREWS
- BOLTING PER API 20E BSL1 (ZINC)
- API 6A 21ST EDITION
- MATERIAL CLASS: EE
- TEMPERATURE: U
- PSL: 2
- PR: 2

NOTE:
1. TUBING SPOOL QUOTED IS SUITABLE FOR TUBING HANGER WITH 3-LEGGED ESP. CUSTOMER TO CONFIRM ESP TYPE.
ANY CHANGES TO ESP TYPE, BIDDER TO REVIEW AND ADVISE IF ANY COMMERCIAL AND DELIVERY IMPACT.

GATE VALVE ASSEMBLY,
- 2-1/16" 5,000 PSI
- BI-DIRECTIONAL
- FLANGE ENDS CONNECTION
- HANDWHEEL OPERATED
- HANDWHEEL INCLUDED
- BOLTING PER API 20E BSL1 (ZINC)
- API 6A 21ST EDITION
- MATERIAL CLASS: DD
- TEMPERATURE CLASS: U
- PSL: 2
- PR: 2F

PLUG, VALVE REMOVAL 1.900"-11-1/2 TPI SHARP VEE THREAD API 6A 21ST EDITION MATERIAL CLASS : DD

BLIND FLANGE, VRP, 2-1/16" 5M X 1/2" LP PORT EE, P-U, PSL3 API 6A 21ST EDITION

COMPANION FLANGE 2-1/16" 5M X 2" LP PORT EE, P-U, PSL3, PR2 API 6A 21ST EDITION

BULL PLUG, 2 LP X 4 LG WITH 1/2" NPT TAPPED MATERIAL CLASS : DD API 6A 21ST EDITION

RING GASKET, RX-24, ALLOY / CARBON STEEL
FOR 2-1/16" 3M/5M FLANGE CONNECTION

STUD W/TWO NUT, 7/8 9 UNC X 6.500 LG, B7 STUD & A194 GR 2H NUT, ZINC, 20E, BSL1
FOR 2-1/16" 3M/5M FLANGE CONNECTION

FITTING, TEST PORT GREASE, 1/2 NPT, FREE FLOW TYPE,
SS316L, H2S
PSL: - TEMP: L-X MATL. CLASS: FF

NEEDLE VALVE, STRAIGHT
1/2" NPT MALE X FEMALE, 10M
STAINLESS STEEL

PRESSURE GAUGE, 0-3000 PSI, 4" FACE, SS CASE AND STEM,
W/ 1/2 NPT MALE BTM CONN

RING GASKET, RX-53, ALLOY / CARBON STEEL
FOR 11" 3,000 PSI FLANGE CONNECTION

BLASTING AND OFFSHORE PROTECTIVE COATING PER WEIR PAINTING SPECIFICATION APSC-001 - FINAL COAT COLOUR: TBA

TUBING HANGER, 11" NOMINAL X 3 1/2" TUBING

TUBING HANGER ASSEMBLY, KSB TYPE
- 11" X 3-1/2" EU BOX BOTTOM & TOP
- PREP FOR 3" NOM TYPE 'H' BPV
- C/W TWO ELASTOMERIC SEALS ON BODY
- C/W TWO ELASTOMERIC SEALS ON NECK
- C/W ONE (1) PORT FOR 1/4" CONTINUOUS CONTROL LINE
TOP & BOTTOM COMPLETE WITH 316SS FITTINGS AND PLUGS
- API 6A 21ST EDITION
- MATERIAL CLASS: DD
- TEMPERATURE CLASS: U
- PSL: 2
- PR: 2

NOTE:
1. CUSTOMER TO CONFIRM THREAD TYPE, POUNDAGE AND GRADE. ANY CHANGES TO THREAD QUOTED, BIDDER TO REVIEW AND ADVISE IF ANY COMMERCIAL AND DELIVERY IMPACT.

TORQUE UP CHARGE
PUP JOINT TO BE SUPPLIED BY CUSTOMER

PRESSURE TEST W/ PUP JOINT

TUBING HEAD ADAPTER AND X-MAS TREE
11" 3M X 3 1/8" 3M

TUBING HEAD ADAPTER ASSY
- TOP CONNECTION: 3 1/8" 3,000 PSI STUDDED
- BOTTOM CONNECTION: 11" 3,000 PSI STUDDED
- BTM PREP FOR TUBING HANGER NECK PROFILE
- PREP F/ (1) ONE 1/4" CONTROL LINE EXIT PORT
COMPLETE WITH 316SS FITTING AND PLUG
- BOLTING PER API 20E BSL1 (ZINC)
- API 6A 21ST EDITION
- MATERIAL CLASS: EE
- TEMPERATURE CLASS: U
- PSL: 2
- PR: 2

DHSV, TEST PORT, ASSY, 5000 PSI W.P, 1 1/4 LP, W/ 1/2 NPT NEEDLE VALVE

GATE VALVE ASSEMBLY,
- 3 1/8" 3,000 PSI
- BI-DIRECTIONAL
- FLANGE ENDS CONNECTION
- HANDWHEEL OPERATED
- HANDWHEEL INCLUDED
- BOLTING PER API 20E BSL1 (ZINC)
- API 6A 21ST EDITION
- MATERIAL CLASS: DD
- TEMPERATURE CLASS: U
- PSL: 2
- PR: 2F

CROSS ASSEMBLY,
3-1/8" 3M STUDDED TOP X BTM,
C/W TWO 3 1/8"-3M STUDDED OUTLETS
API 6A 21 EDITION
API 20E BSL 1 (ZINC)
PSL-3, P-X, EE

BLIND FLANGE, 3-1/8 3M X 1/2 NPT
EE, P-U, PSL 2
API 6A 21ST EDITION

ADAPTER, TREE TOP, ASSEMBLY
3-1/8 3M FLG X 5-3/4-4 ACME-2G THD
W/ 3-1/2 EU LIFTING THD
API 6A 21 EDITION
EE, S-U, PSL2

RING GASKET, RX-31, ALLOY / CARBON STEEL
FOR 3-1/8" 3,000 PSI FLANGE CONNECTION

STUD W/TWO NUT, 7/8 9 UNC X 6.500 LG, B7 STUD & A194 GR 2H NUT, ZINC, 20E, BSL1
FOR 3-1/8" 3M FLANGE CONNECTION

FITTING, TEST PORT GREASE, 1/2 NPT, FREE FLOW TYPE,
SS316L, H2S
PSL: - TEMP: L-X MATL. CLASS: FF

NEEDLE VALVE, STRAIGHT
1/2" NPT MALE X FEMALE, 10M
STAINLESS STEEL

PRESSURE GAUGE, 0-3000 PSI, 4" FACE, SS CASE AND STEM,
W/ 1/2 NPT MALE BTM CONN

BLASTING AND OFFSHORE PROTECTIVE COATING PER WEIR PAINTING SPECIFICATION APSC-001 - FINAL COAT COLOUR: TBA

TOOLS

COMBINATION TOOL ASSY, 11" NOM
NC-50 CONNECTIONS

BORE PROTECTOR ASSY, KSB-2, 11 NOM

BACK PRESSURE VALVE
TYPE "H"
3" NOMINAL
P-U, FF-0.5

BACK PRESSURE VALVE - TWO WAY
TYPE "H"
3" NOMINAL
P-U, FF-0.5

COMPLETION TOOL ASSEMBLY, H-MOD,
144" STROKE, SOLID YOKE TYPE
C/W SUCKER ROD ADAPTER
C/W TYPE H BPV RUNNING & RETRIEVING TOOL

TOOL, SLIDING THDS, RUNNING AND RETRIEVING,
F/ 2-6 NOM CIW TYPE H BPV

PARMELLE WRENCH

LUBRICATOR ADAPTER ASSY, 3" NOM X 2-3/8 EU,
W/ 5-3/4"-4 ACME-2G,
OTIS PROFILE

TOOL, VR LUBRICATOR, H-MOD, ASSEMBLY, 36 STROKE,
5M, SOLID YOKE TYPE,
C/W 2-1/16 5M FLANGE

RING GASKET, RX-24, ALLOY / CARBON STEEL
FOR 2-1/16" 3M/5M FLANGE CONNECTION

WELLHEAD R/R TOOL, 9-5/8" BC BOX TOP X 11"-3M FLG BOTTOM
