TUBING HEAD ADAPTER AND X-MAS TREE 11" 3M X 3 1/8" 3M

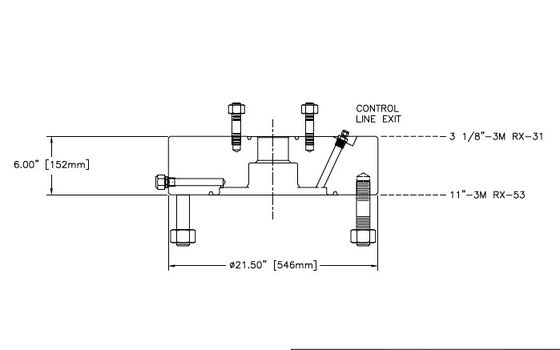

TUBING HEAD ADAPTER 11" 3M X 3 1/8" 3M STUDDED X 11" -3M STUDDED BOTTOM C/W CONTROL LINE EXIT PORT

Description: TUBING HEAD ADAPTER 11" 3M X 3 1/8" 3M STUDDED X 11" -3M STUDDED BOTTOM C/W CONTROL LINE EXIT PORT, Each assembly consist of:

TUBING HEAD ADAPTER ASSY
- TOP CONNECTION: 3 1/8" 3,000 PSI STUDDED
- BOTTOM CONNECTION: 11" 3,000 PSI STUDDED
- BTM PREP FOR TUBING HANGER NECK PROFILE
- PREP F/ (1) ONE 1/4" CONTROL LINE EXIT PORT
COMPLETE WITH 316SS FITTING AND PLUG
- BOLTING PER API 20E BSL1 (ZINC)
- API 6A 21ST EDITION
- MATERIAL CLASS: EE
- TEMPERATURE CLASS: U
- PSL: 2
- PR: 2

DHSV, TEST PORT, ASSY, 5000 PSI W.P, 1 1/4 LP, W/ 1/2 NPT NEEDLE VALVE

GATE VALVE ASSEMBLY,
- 3 1/8" 3,000 PSI
- BI-DIRECTIONAL
- FLANGE ENDS CONNECTION
- HANDWHEEL OPERATED
- HANDWHEEL INCLUDED
- BOLTING PER API 20E BSL1 (ZINC)
- API 6A 21ST EDITION
- MATERIAL CLASS: DD
- TEMPERATURE CLASS: U
- PSL: 2
- PR: 2F

CROSS ASSEMBLY,
3-1/8" 3M STUDDED TOP X BTM,
C/W TWO 3 1/8"-3M STUDDED OUTLETS
API 6A 21 EDITION
API 20E BSL 1 (ZINC)
PSL-3, P-X, EE

BLIND FLANGE, 3-1/8 3M X 1/2 NPT
EE, P-U, PSL 2
API 6A 21ST EDITION

ADAPTER, TREE TOP, ASSEMBLY
3-1/8 3M FLG X 5-3/4-4 ACME-2G THD
W/ 3-1/2 EU LIFTING THD
API 6A 21 EDITION
EE, S-U, PSL2

RING GASKET, RX-31, ALLOY / CARBON STEEL
FOR 3-1/8" 3,000 PSI FLANGE CONNECTION

STUD W/TWO NUT, 7/8 9 UNC X 6.500 LG, B7 STUD & A194 GR 2H NUT, ZINC, 20E, BSL1
FOR 3-1/8" 3M FLANGE CONNECTION

FITTING, TEST PORT GREASE, 1/2 NPT, FREE FLOW TYPE,
SS316L, H2S
PSL: - TEMP: L-X MATL. CLASS: FF

NEEDLE VALVE, STRAIGHT
1/2" NPT MALE X FEMALE, 10M
STAINLESS STEEL

PRESSURE GAUGE, 0-3000 PSI, 4" FACE, SS CASE AND STEM,
W/ 1/2 NPT MALE BTM CONN

BLASTING AND OFFSHORE PROTECTIVE COATING PER WEIR PAINTING SPECIFICATION APSC-001 - FINAL COAT COLOUR: TBA

TOOLS:

COMBINATION TOOL ASSY, 11" NOM
NC-50 CONNECTIONS

BUSHING ASSY, F/ KSB COMBINATION TOOL, 13" NOM

BORE PROTECTOR ASSY, KSB-2, 13 5/8" NOM

BORE PROTECTOR ASSY, KSB-2, 11 NOM

BACK PRESSURE VALVE
TYPE "H"
3" NOMINAL
P-U, FF-0.5

BACK PRESSURE VALVE - TWO WAY
TYPE "H"
3" NOMINAL
P-U, FF-0.5

COMPLETION TOOL ASSEMBLY, H-MOD,
144" STROKE, SOLID YOKE TYPE
C/W SUCKER ROD ADAPTER
C/W TYPE H BPV RUNNING & RETRIEVING TOOL

TOOL, SLIDING THDS, RUNNING AND RETRIEVING,
F/ 2-6 NOM CIW TYPE H BPV

PARMELLE WRENCH

LUBRICATOR ADAPTER ASSY, 3" NOM X 2-3/8 EU,
W/ 5-3/4"-4 ACME-2G,
OTIS PROFILE

TOOL, VR LUBRICATOR, H-MOD, ASSEMBLY, 36 STROKE,
5M, SOLID YOKE TYPE,
C/W 2-1/16 5M FLANGE

RING GASKET, RX-24, ALLOY / CARBON STEEL
FOR 2-1/16" 3M/5M FLANGE CONNECTION

WELLHEAD R/R TOOL, 13-3/8" BC BOX TOP X 13-5/8"-3M FLG BOTTOM

CONTIGENCY EQUIPMENT
ADAPTER, 13 3/8" BTC PIN X 13 3/8" SLIP-ON WELD

ADAPTER, 13 3/8" BTC PIN TOP X 13 3/8" SLIP-ON WELD BOTTOM,
Matl. Class: EE

PACKING, NITRILE,
F/ 13 5/8" X 7" KSB-2 CASING HANGER

SPARE SEAL (1 SET), NITRILE
F/ 13 5/8" X 7" TYPE H PACKOFF

SEAL, O-RING, HSN, 80 DURO, 6.880 I.D. X .750 C.S.
PSL: 3 Temp: P-U Matl. Class: -
F/ TUBING HEAD

PACKING, ANCHOR, SCREW, 1.140 I.D. X 1.480 OD X 1.00 LG.,
W/ 304 SS, CAPS
PSL: - Temp: K-Y Matl. Class: -
F/ TUBING HEAD LOCKDOWN SCREW

SEAL, O-RING, NBR, 70 DURO, .912 ID X .210 CS
PSL: 3 TEMP: P-T MATL. CLASS: -
F/ TUBING HEAD LOCKDOWN SCREW

SEAL, O-RING, HSN/HNBR, 90 DURO, 9.875 ID X .500 CS,
PSL: 3 TEMP: P-U MATL. CLASS: FF/HH
F/ TUBING HANGER BODY

SEAL SET, EXT, HNBR 80, .275 CS, F/ 5.004 BORE,
O-RING AND (2) PARBAK BACKUP RING
F/ TUBING HANGER NECK

CONNECTOR, MALE, 1/4 TUBE X 1/4 MNPT, BORED THROUGH,
SS, WP 7500 PSI
F/ TUBING HANGER CONTROL LINES

CONNECTOR, MALE, 1/4 TUBE X 1/2 MNPT, BORED THROUGH,
SS, WP 7500 PSI
F/ TUBING HEAD ADAPTER

SEAL, O-RING, HSN 80 DURO, 3.600 I.D. X .210 C.S.
PSL: 3 TEMP: P-U MATL. CLASS: -
F/ TREE CAP ASSY

PACKING, DOVETAIL, 11 NOM,
F/ 11 NOM KSB COMBINATION TOOL

PACKING, DOVETAIL, 13 NOM,
F/ 13 NOM KSB BUSHING

SEAL, O-RING, NBR, 70 DURO, 12.475 ID X .275 CS
PSL: 3 TEMP: P-T MATL. CLASS: -
F/ 13 5/8" NOM BORE PROTECTOR

SEAL, O-RING NBR 70 DURO 9.975 I.D. X .275 C.S.
PSL: 3 Temp: P-T Matl. Class: -
F/ 11" NOM BORE PROTECTOR

REDRESS KIT F/ SS BACK PRESSURE VALVE
3" NOMINAL TYPE "H"

REDRESS KIT F/ SS BACK PRESSURE VALVE, TWO WAY
3" NOMINAL TYPE "H"

SEAL, VITON, 3 NOM, TYPE H, FOR BPV

SEAL, VITON, 3 NOM, TYPE H, FOR TWCV

SEAL, O-RING, 3.475 I.D. X .210 C.S., HSN, 80 DURO
PSL: 3 TEMP: - MATL. CLASS: -
F/ LUBRICATOR ADAPTER

RING GASKET, RX-24, ALLOY / CARBON STEEL
FOR 2-1/16" 3M/5M FLANGE CONNECTION

RING GASKET, RX-31, ALLOY / CARBON STEEL
FOR 3-1/8" 3,000 PSI FLANGE CONNECTION

RING GASKET, RX-53, ALLOY / CARBON STEEL
FOR 11" 3,000 PSI FLANGE CONNECTION

RING GASKET, RX-57, ALLOY / CARBON STEEL
FOR 13-5/8" 3,000 PSI FLANGE CONNECTION

REDRESS KIT F/ GATE VALVE, CONSISTS OF SEALS
F/ 2 1/16" 3M/5M VALVE

REDRESS KIT F/ GATE VALVE, CONSISTS OF SEALS
F/ 3 1/8" 3M/5M VALVE

STACKUP TEST CONSISTS OF THE FOLLOWING:

A) FIT AND FUNCTION TEST FOR TOOLS / WEAR BUSHINGS & CASING / TUBING HANGER WITH APPLICABLE HEAD / SPOOL, WITH DIMENSIONAL VERIFICATION.

B) HYDRO TEST (15 MINS) FOR CONNECTION BETWEEN TUBING HEAD, TUBING HANGER & TUBING HEAD ADAPTER.
