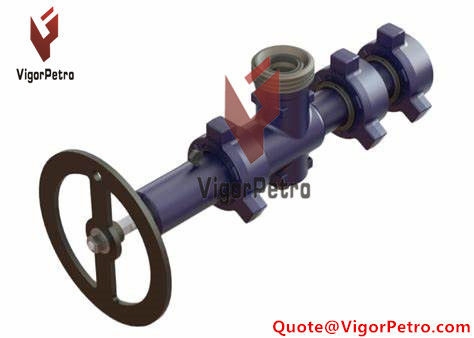

Hammer Union Choke Valve, Adjustable and Positive 2" Fig 1502, 3" Fig 1502

Hammer Union Choke Valve, Adjustable and Positive 2" Fig 1502, 3" Fig 1502- for Choke Manifold and Fracturing Job

VIGORPETRO Hammer Union adjustable and positive choke valves are used in high pressure applications such as choke manifolds, flow through and well test manifolds.

Available in either 2″ or 3″ 1502 WECO union connections, and 3/4″ to 2″ maximum orifice size.

Features:

• 2″ 1502 and 3″ 1502 Union Connections

• 10,000 – 15,000 PSI Pressure

• 3/4″ to 2″ Max. Orifice

• Stainless or Tungsten Carbide Stainless Trim

Hammer Union Choke Valve Specifications:

• API Nominal Size: 2", 3", 4"
• API Pressure Rating: 2000 PSI, 3000 PSI, 5000 PSI, 10000 PSI, 15000 PSI CWP

• Max orifice: 1"-3".

• Material Class: AA, BB, CC DD, EE, FF, HH
• Temp Rating: -59°to 177°C(-75°to 350°F)
• API Temperature Classifications: K,L,N,P,R,S,T,U,V,X,Y
• Performance Requirement: PR1, PR2
• Product Specification Level: PSL1, PSL2, PSL3, PSL3G, PSL4
• End Connection: FIG 1502, FIG 2202, FIG 2002, FIG 602, FIG 206.
• Design Standards: API Spec 6A, API 16C, ASME, ANSI, NACE MR0175
• Working Medium: Petroleum, Natural Gas, Water, Mud, Gas containing H2S, CO2

Typical Industry Applications:

• Oil Production Start-Up/ Shut-Down
• Gas & Condensate Production
• Gas Lift
• Well Testing
• Choke & Kill Manifolds
• Multi-Phase Flows
• Pump Discharge
• Fracturing Clean-up
• FlaringAdditional

VigorPetro is a professional manufacturer of API 6A Wellhead Equipment, API6A Gate Valves, Choke Valves, Check Valve, Ball Valves, DEMCO Gate Valve, Plug Valves, Blowout Preventers(BOPs), Choke & Kill Manifolds, Flowline products, etc. Aside from the H2 Style Choke Valves, we also offer the External Sleeve Chokes, Cage & Plug Type Choke, Angle Type Choke and Drilling Choke with Hydrualic Actuator.
