|Size:||28/64"||Body Material:||AISI 410SS+QPQ|
|Insert Material:||Tungsten Carbide Linned||Length:||6.12" (or Customizable Length)|
Specifications: BEAN, CHOKE; ASSEMBLY, 28/64'', P/N: 51026789, CH2, 1'' BODY 28/64'' W/304 GASKET 3/5/10/15K, 410 SSTC QPQ, NITRIDED THREADS, 6.12'' LONG, FULLY TANGSTEIN LINED
A Choke Bean is istalled in the positive or fixed choke valve to control the flow rate of fluids which is usually mounted on or close to the Christmas tree or Choke Manifolds.

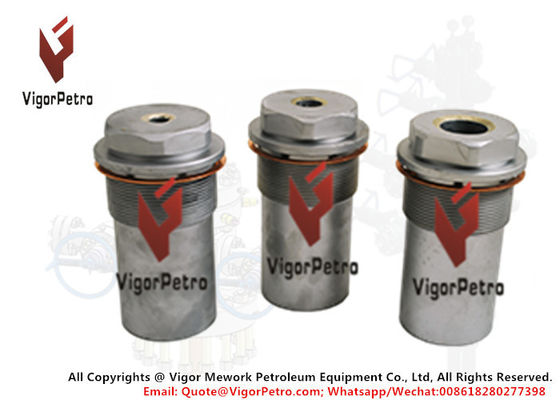

VigorPetro's choke bean is compatible with Cameron type H2 big john choke bean, the body Material is from AISI 410SS, lined with Tungsten Carbide or ceramic to protect them from corrosive and abrasive wear. Each choke bean is a specific diameter, usually in increment of 1/64-inch or 4/64-inch, and is screwed into the choke box. Depending on the type of equipment used, the size of the choke bean can be as large as 192/64 inches.
QPQ treatment can be applied on the body of choke bean, to enhance the surface hardness
♦ 100% Interchangeable with Cameron H2 Chokes.
♦ Stainless steel- hardened body.
♦ Full ceramic or tungsten carbide lined.
♦ Choke bean size: 4/64" ~ 192/64" increment with 4/64".
♦ Both ceramic liner and tungsten carbide liner are all available.
♦ Solid Nickel alloy bean for High H2S Service
♦ Tungsten carbide lined having AISI 410 / 718 / 31803 steel carrier
♦ Medium: oil and gas water, sand
♦ Customizable size.
Vigor Mework Petroleum Equipment Co., Ltd - VigorPetro is a professional manufacturer of API 6A Wellhead & Christmas Trees, API6A Gate Valves, API 6A Flanges, API 16A Blowout Preventers, API 16C Choke & Kill Manifolds etc. What's more, we can supply the full model of choke valves, including Sxternal Sleeve Chokes, we also offer the Cage & Plug Type Choke, Angle Type Choke, Positive / Fixed Choke, Drilling Choke with Hydrualic Actuator and H2 Type Chokes.
