Payment & Shipping Terms:
|Size Range:||1-13/16" To 7-1/16"||Pressure Range:||2000psi To 20000psi|
|Temp Class:||PU, LU, U, KU, PX||Material Class:||AA, BB, CC, DD, EE, FF, HH|
|PSL:||PSL1, PSL2, PSL3, PSL3G, PSL4||PR:||PR1, PR2|
|Medium:||Oil, Gas, Mud, Water||Std:||API 6A|
Check valves are used to prevent back flow in the line. The pressure of the fluid passing through
a system opens the valve, while any reversal of flow will close the valve.

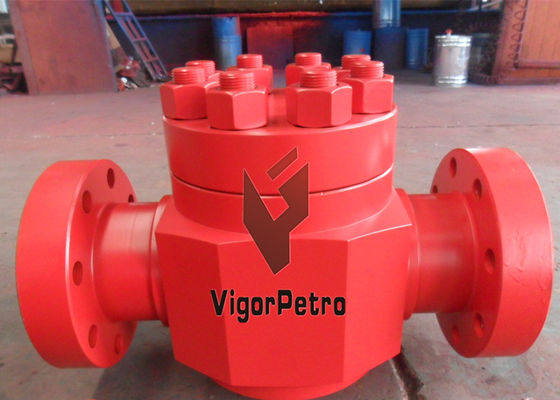

VIGORPETRO's Lift Type check valves are designed and manufactured according to API Spec. 6A, features metal-to-metal seals used for high pressure and temperature services. Primary applications for the Lift Style check valves are high pressure mud choke manifolds and high pressure Christmas Tree injection and kill lines.
♦ Pressures up to 20,000 PSI for Various Sizes (1-1/13" to 7-1/16")
♦ Internal parts are completely interchangeable with OEM
♦ A wide range of body and trim materials to meet various operatingconditions
♦ Especially designed for Production and drilling applications
♦ Check valves have Elastomeric Seal between Seat and Poppet
♦ Low maintenace operation
Geneal Data Sheet:
|Bore Size||1-13/16“ to 7-1/16“|
|Working Pressure||2,000psi, 3,000psi, 5,000Psi, 10,000psi, 15,000psi, 20,000psi|
|Temp. Class||P-U, L-U, U, K-U, P-X|
|Material Class||AA, BB, CC, DD, EE, FF, HH|
|PSL||PSL1, PSL2, PSL3, PSL3G, PSL4|
|Service||Standard Service, Sour Service|
|Standard||API 6A, API Q1, ISO 9001|
Vigor Mework Petroleum Equipment Co., Ltd - VigorPetro is a professional manufacturer of API 6A Wellhead & Christmas Trees, API6A Gate Valves, API 6A Flanges, API 16A Blowout Preventers, API 16C Choke & Kill Manifolds etc. Aside from the Lift Type Check Valve, we also manufacture Type R Check Valve, MS Type Check Valve, Piston Type Check Valve, Swing Type Check Valve ,e.t.c, for all client needs.
Any enquiry please contact us by email: Quote@VigorPetro.com or Kevin.Dai@VigorPetro.com.
Visit our website: www.VigorWellheadValve.com or www.VigorPetro.com for more products information.
Contact Person: Mr. Kevin
