Product Details:
Payment & Shipping Terms:
|
| Size: | 4-1/16" | Pressure: | 50000 Psi |
|---|---|---|---|
| Temp Class: | PU | Material Class: | DD Or EE |
| PSL: | PSL3 | PR: | PR1 Or PR2 |
| Medium: | Oil, Gas, Mud, Water | Std: | API 6A, ASME 16.34,API 598 |
| Service: | Nace Mr-0175 |
Data Sheet:

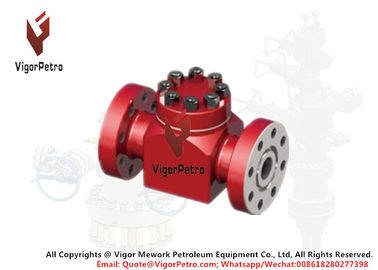

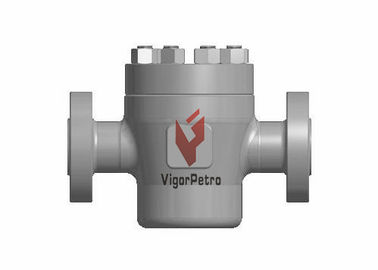

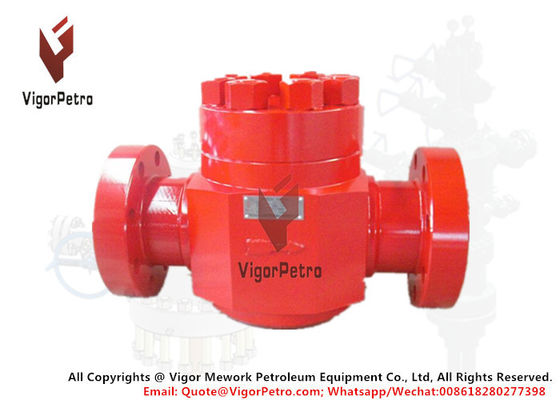

VALVE,CHECK:
NRV,SWING TYPE FULL OPENING
SIZE: 4.1/16"
CONFIGURATION: 1-WAY
DESIGN RATING: 5,000 PSIG
TEMPERATURE RATING: 250 DEG F
CONNECTION: Flanged End RTJ
BONNET/COVER CONSTRUCTION: BOLTED CAP
BODY MATERIAL: A216-WCB,CARBON STEEL
OPERATING TEMPERATURE: U
APPLICATION: FEEDER LINE
TEXT:FOR STANDARD OIL AND GAS SERVICE API-6A 20TH EDITION MATERIAL CLASS: BB TEMPERATURE CLASS: U PSL: 2 , PR: 2
SUPPLIER TO PROVIDE RELEVANT CATALOGUES, MATERIAL TEST & PRESSURE TEST CERTIFICATES AND OTHER DETAILS OF THEIR MATERIAL ALONG WITH THEIR QUOTATIONS. SUPPLIER TO PROVIDE RELEVENT API, ASME AND MILL TEST CERTIFICATE ETC AS APPLICABLE.
VALVE,CHECK: 4.1/16" 5k TYPE: NRV,SWING TYPE FULL OPENING SIZE: 4.1/16" CONFIGURATION: 1-WAY DESIGN RATING: 5,000 PSIG TEMPERATURE RATING: 250 DEG F CONNECTION: Flanged End RTJ R-39 BONNET/COVER CONSTRUCTION: BOLTED CAP BODY MATERIAL: A216-WCB,CARBON STEEL OPERATING TEMPERATURE: U APPLICATION: FEEDER LINE TEXT:FOR STANDARD OIL AND GAS SERVICE API-6A LATEST EDITION MATERIAL CLASS: BB TEMPERATURE CLASS: U PSL: 2 , PR: 2
SUPPLIER TO PROVIDE RELEVANT CATALOGUES, MATERIAL TEST & PRESSURE TEST CERTIFICATES AND OTHER DETAILS OF THEIR MATERIAL ALONG WITH THEIR QUOTATIONS. SUPPLIER TO PROVIDE RELEVENT API, ASME AND MILL TEST CERTIFICATE ETC AS APPLICABLE.
Check valves are used to prevent back flow in the line. The pressure of the fluid passing through
a system opens the valve, while any reversal of flow will close the valve.

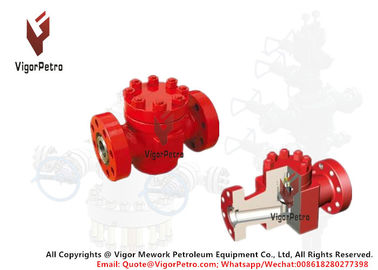

VIGORPETRO's MS Type check valves are designed and manufactured according to API Spec. 6A, features metal-to-metal seals used for high pressure and temperature services. Primary applications for the MS Style check valves are high pressure mud choke manifolds and high pressure Christmas Tree injection and kill lines.
Features:
♦ Pressures up to 20,000 PSI for Various Sizes (1-1/13" to 7-1/16")
♦ Internal parts are completely interchangeable with OEM
♦ A wide range of body and trim materials to meet various operatingconditions
♦ Especially designed for Production and drilling applications
♦ Check valves have Elastomeric Seal between Seat and Poppet
♦ Low maintenace operation
Geneal Data Sheet:
| Bore Size | 1-13/16“ to 7-1/16“ |
| Working Pressure | 2,000psi, 3,000psi, 5,000Psi, 10,000psi, 15,000psi, 20,000psi |
| Temp. Class | P-U, L-U, U, K-U, P-X |
| Material Class | AA, BB, CC, DD, EE, FF, HH |
| PSL | PSL1, PSL2, PSL3, PSL3G, PSL4 |
| PR | PR1, PR2 |
| Service | Standard Service, Sour Service |
| Standard | API 6A, API Q1, ISO 9001 |
Vigor Mework Petroleum Equipment Co., Ltd - VigorPetro is a professional manufacturer of API 6A Wellhead & Christmas Trees, API6A Gate Valves, API 6A Flanges, API 16A Blowout Preventers, API 16C Choke & Kill Manifolds etc. Aside from the MS Type Check Valve, we also manufacture Type R Check Valve, Lift Type Check Valve, Piston Type Check Valve, Swing Type Check Valve ,e.t.c, for all client needs.
