Detailed Product Description
Product Name: H2 Choke Valve Size Range: 1-13/16" To 7-1/16"
Pressure Rating: 2000psi - 20000psi Material Class: AA, BB, CC DD, EE, FF, HH
End Connection: Flanged, Threaded, Hammer Union Temp Class: PU, LU, KU, PX
PSL: PSL1-PSL4 PR: PR1-PR2

API 6A Type H2 Adjustable Choke Valve (Needle Choke) - for Wellhead and Manifolds



VIGORPETRO Type H2 Adjustable choke valves are improved from Cameron H2 series Adjustable Choke suitable for well testing, high pressure drilling and production accompanied with sour gas or / and sand from working pressure 2,000 psi to 20,000 psi, it is designed to adjust the effective area available, for the flow to control the production rate, through rotating the hand wheel which are designed, manufactured and tested in accordance with API Spec. 6A or ASME Standard. Both Manual Operated and Hydraulic Operated are available.



API 6A Type H2 Adjustable Choke Valve (Needle Choke) - for Wellhead and Manifolds                                       API 6A Type H2 Adjustable Choke Valve (Needle Choke) - for Wellhead and Manifolds

                            H2 Type Adjustable Manual Choke                  H2 Type Hydraulic Choke



Features

  • Integral and forged valve (angle) body with qualified mechanical properties
  • Long life and low maintenance
  • Body to bonnet contact behind the O-ring seal eliminates bonnet seal extrusion
  • A locking device is set on stem for adjustable choke
  • Large visual indicator is adjustable by increment of 1/64"

  • Carbide alloy is embedded into stem needle of valve, seat.

  • Drive has manual, hydraulic and gear transmission forms
  • Connections have flange, thread and hub

H2 Adjustable Choke Valve Specifications

  • ASME Nominal Size: 2", 3", 4", 6", 8", 10"
  • API Nominal Size: 2-1/16", 2-9/16", 3-1/8”, 3-1/16", 4-1/16", 5-1/8", 7-1/16", 9"
  • ASME Pressure Rating: 600#, 900#, 1500#, 2500#, 4500#
  • API Pressure Rating: 2000 PSI, 3000 PSI, 5000 PSI, 10000 PSI, 15000 PSI CWP
  • Max orifice: 1"-3".

  • Material Class: AA, BB, CC DD, EE, FF, HH
  • Temp Rating: -59°to 177°C(-75°to 350°F)
  • API Temperature Classifications: K,L,N,P,R,S,T,U,V,X,Y
  • Performance Requirement: PR1, PR2
  • Product Specification Level: PSL1, PSL2, PSL3, PSL3G, PSL4
  • End Connection: ASME RF Flanged, API RF/RTJ Flanged, Threaded, Hammer Union
  • Design Standards: API Spec 6A, API 16C, ASME, ANSI, NACE MR0175
  • Working Medium: Petroleum, Natural Gas, Water, Mud, Gas containing H2S, CO2

Typical Industry Applications:

  • Oil Production Start-Up/ Shut-Down
  • Gas & Condensate Production
  • Gas Lift
  • Well Testing
  • Choke & Kill Manifolds
  • Multi-Phase Flows
  • Pump Discharge
  • Fracturing Clean-up
  • FlaringAdditional

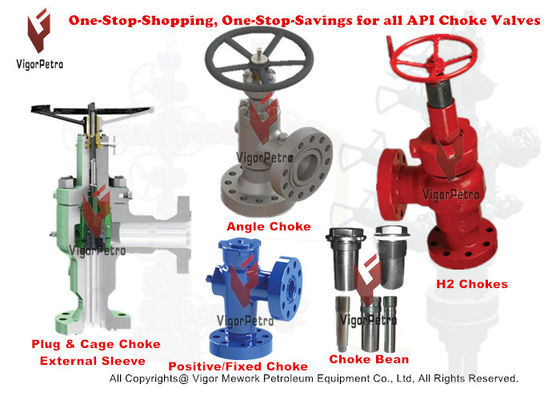

VigorPetro is a professional manufacturer of API 6A Wellhead Equipment, API6A Gate Valves, Choke Valves, Check Valve, Ball Valves, DEMCO Gate Valve, Plug Valves, Blowout Preventers(BOPs), Choke & Kill Manifolds, Flowline products, etc. Aside from the H2 Style Choke Valves, we also offer the External Sleeve Chokes, Cage & Plug Type Choke, Angle Type Choke and Drilling Choke with Hydrualic Actuator.
