API ASME High Pressure External Sleeve Control Choke Valve (Angle Choke Valves)

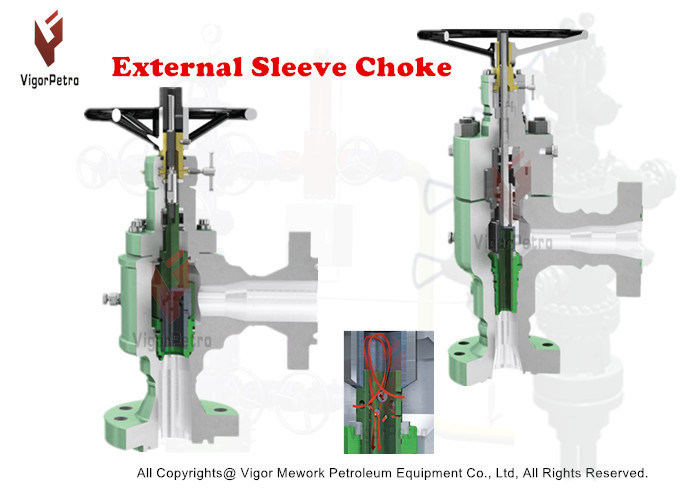

VIGORPETRO external sleeve control choke comes with a sleeve that throttles the flow on the external diameter of the ported cage. The external sleeve trim is particularly suited for lowcapacity and high pressure-drop conditions. The external sleeve is designed specifically for severely erosive service to improve the life of a choke specifically for conditions of high pressure drops and high sand concentrations.

External Sleeve control choke features

1. The Cage and Sleeve are completely made by Tungsten Carbide alloy
2. Large visual indicator is adjustable by increment of 1/64"
3. Two-piece stem is threaded and locked, and is removed from wellbore fluids.
4. Control sleeve and seat sealing surfaces are not directly exposed to the high velocity flow
5. Lower operating torque with Heavy-duty thrust bearings
6. Pressure-balanced seals reduce operating forces and enabling greater ease of adjustment

External Sleeve control choke Specifications

• ASME Nominal Size: 2", 3", 4", 6", 8", 10"
• API Nominal Size: 2-1/16", 2-9/16", 3-1/8”, 3-1/16", 4-1/16", 5-1/8", 7-1/16", 9"
• ASME Pressure Rating: 600#, 900#, 1500#, 2500#, 4500#
• API Pressure Rating: 2000 PSI, 3000 PSI, 5000 PSI, 10000 PSI, 15000 PSI CWP

• Max orifice: 1"-3".

• Material Class: AA, BB, CC DD, EE, FF, HH
• Temp Rating: -59°to 177°C(-75°to 350°F)
• API Temperature Classifications: K,L,N,P,R,S,T,U,V,X,Y
• Performance Requirement: PR1, PR2
• Product Specification Level: PSL1, PSL2, PSL3, PSL3G, PSL4
• End Connection: ASME RF Flanged, API RF/RTJ Flanged, Threaded, Hammer Union
• Design Standards: API Spec 6A, API 16C, ASME, ANSI, NACE MR0175
• Working Medium: Petroleum, Natural Gas, Water, Mud, Gas containing H2S, CO2

Typical Industry Applications:

• Oil Production Start-Up/ Shut-Down
• Gas & Condensate Production
• Gas Lift
• Well Testing
• Choke & Kill Manifolds
• Multi-Phase Flows
• Pump Discharge
• Fracturing Clean-up
• FlaringAdditional
