Detailed Product Description
Size:: 8-5/8", 9-5/8", 10-3/4", 11", 13-5/8" PressureRaiting: 2000psi - 20000psi
Material Class: AA, BB, CC, DD, EE, FF, HH Temp Class:: L, P, R, S, T, U, V
PSL: PSL1, PSL2, PSL3, PSL3G, PSL4 PR: PR1, PR2
Standard: API Spec 6A, NACE MR0175 Application: Oil Well & Gas Well Drilling Production

API 6A Multi-Bowl Wellhead System Multi-Bowl Spool

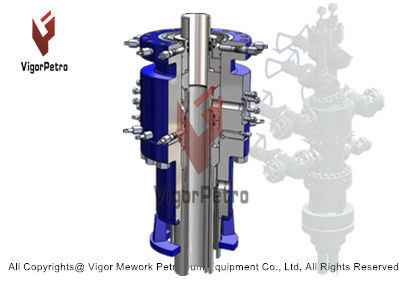

VigorPetro's Multi-Bowl Wellhead Assembly supports and seals two strings of pipe in a single head, consists of two pieces: a lower housing and an upper housing-installed as one complete unit. If the intermediate casing sticks, the mandrel casing hanger cannot be used. The two housings can be separated and the emergency slip-style casing hanger can easily be installed.

API 6A Multi-Bowl Wellhead System Multi-Bowl Spool

Our multi-bowl wellhead system will save you time and money by safely landing multiple casing strings without having to have a nipple up crew working under a Blowout Preventer.

Our Multi-Bowl Wellhead System comes complete with wear bushings, running tools, standard and emergency pack off, and combination test plug/running retrieving tool. Available in various sizes and types, we offer Multi-Bowl Wellhead systems from 2,000 PSI to 15,000 PSI to fit any need and can customize the configuration to meet customers' ever-changing demands.

All of our Multi-Bowl Wellhead Assemblies are fully designed, manufactured, and tested in accordance with API 6A & NACE MR0175 standards.

We also produce and supply Conventional Wellhead Assembly & Christmas Tree, Integral Wellhead, Dual Tubing Wellhead, Water Injection Wellhead, Thermal Recovery Wellhead, Frac Tree/Frac Stack, ESP Wellhead, Casing Heads, API6A Gate Valves, Choke & Kill Manifolds, Tubing Heads and Hangers, Flanges, High Pressure Pipes & Fittings etc.



Detailed Specifications:

Product Name Multi-Bowl Wellhead Assembly, Multi Bowl Spools
Multi-Bowl Spools Size 8-5/8", 9-5/8", 10-3/4", 11", 13-5/8" Other sizes Customized
Working Pressure 2000PSI - 20000PSI
Outlets Studded Outlets
Material Class AA, BB, CC, DD, EE, FF, HH
Performance Requirement PR1, PR2
Product Specification Level PSL-1, PSL-2, PSL-3, PSL-3G, PSL-4
Standard API Spec 6A, NACE MR0175
Medium Crude Oil, Natural Gas, Mud & Gas (H2S or CO2)
