Integral Flange size 2 1/16" * 5K with 2" Hammer Union 1502 Male with inconel 625 inlay.

China Integral Flange size 2 1/16" * 5K with 2" Hammer Union 1502 Male with inconel 625 inlay. supplier
Integral Flange size 2 1/16" * 5K with 2" Hammer Union 1502 Male with inconel 625 inlay. supplier

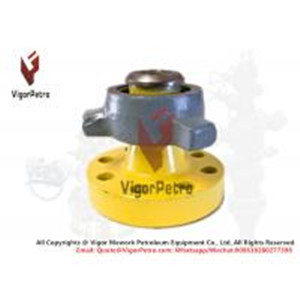

Large Image :  Integral Flange size 2 1/16" * 5K with 2" Hammer Union 1502 Male with inconel 625 inlay.

Product Details:

Place of Origin: CHINA
Brand Name: VigorPetro
Certification: API6A
Model Number: 2-1/16" 5M X 2 1502 MALE

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: 10-20000usd
Packaging Details: Plywood Box
Delivery Time: 5-8 days
Payment Terms: Western Union, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/month
Detailed Product Description
Part: ADAPTER FLANGE Flange Size: 2-1/16"
Flange Raiting: 5000PSI Weco Size: 2" FIG 1502 MALE
Material: AISI 4130 DD/EE Temp Class: PU, LU
SIF #: WEC-GAS-002



Integral Flange size 2 1/16" * 5K with2" Hammer Union Fig1502 Male with Inconel 625 Inlay

Integral Flange size 2 1/16" * 5K with 2" Hammer Union 1502 Male with inconel 625 inlay.





Description: Integral Flange size 2 1/16" * 5K with 2" Hammer Union, Fig1502 Bore 2" Male 625 Inconel Lined Ring Groove API 16A Last Edition H2S Trim Item T-20 Material Class DD PSL2 PR2with complete stud and nuts.





VigorPetro Manufactures and provides Weco Union Adapter Flanges in both Female and Male connection types. Flange sizes range from 1-13/16" to 7-1/16", WECO size 2", 3" and 4" with Figure 206, Figure 602, Figure 1002, Figure 1502, Figure 2002 and Figure 2202 connections, the cold working pressures starting from 2000PSI to 20000PSI.

Integral Flange size 2 1/16" * 5K with 2" Hammer Union 1502 Male with inconel 625 inlay.

VigorPetro's WECO Union Adapter Flanges are widely used in connection of different connectors for the oilfield wellhead, manifold, frac equipment etc. Weco Flanges are fully designed, manufactured, and tested in accordance with API 6A and API Spec Q1 standards. The standard material is high quality integral forged AISI 4130 alloy steel, AISI 410 Stainless Steel and other material are available upon customer's request.

We can also supply the Weco Adapter Flange with a Blacking Plug (Blind Male or Blind Female Plug) c/w 1/2” NPT Port.

Specifications:

Product Name Weco Flange, Adpter Flange, Union Falnge
Flange Size 1-13/16", 2-1/16", 2-9/16", 3-1/16", 3-1/8", 4-1/16", 5-1/8", 7-1/16“ or Customized
Weco Size 1", 2", 3", 4"
Weco Conection Fig 206, Fig 602, Fig1002, Fig1502, Fig 2002, Fig 2202
WorkingPressure 2000PSI, 3000PSI, 5000PSI, 10000PSI, 15000PSI, 20000PSI
Material AISI 4130, AISI 410SS, INCONEL 625, or as per customers' requirements
Temp. Class PU, LU, KU, PX
Material Class AA, BB, CC, DD, EE, FF, HH
PSL PSL1, PSL2, PSL3, PSL3G, PSL4
PR PR1, PR2
Standard API 6A 21TH, NACE MR0175
Application Wellhead, Manifolds, Frac, Pipe Connection



We are a professional manufacturer of Wellhead Assemblies, Christmas Trees, API6A Gate Valves, Blowout Preventers, Choke Manifolds, Kill Manifolds etc. Aside from API6A Weco Union Adapter Flange, we also produce and sell Welding Neck Flange, Threaded Flanges, Spacer Spool Flanges, Blind Flanges, Companion Flanges, Target Flanges, Test Flanges, Double Studded Adapter Flanges(DSAF), and Adapter Spools for all client needs.
