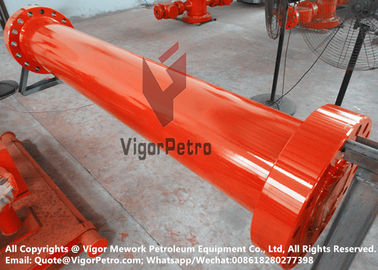

Adapter Spool Crossover with 18-3/4" 5M BX-163 Flange x 13-5/8" 5M BX-160 Flange 5 Meters long

Adapter Spool Crossover with 18-3/4" 5M BX-163 Flange x 13-5/8" 5M BX-160 Flange 5 Meters longAPI 6A EE PSL3 LU NACE MR-0175

Specifications:  Spacer Spool Assembly  18-3/4" 5,000 PSI Flanged x 13-5/8" 5000PSI Flanged x 5 meters long

Material Class EE

Temp Class L-U

PSL 3

API 6A monogrammed per 21st Edition

Note: We can make the spacer spools as per customized length.

API 6A & API 16A High Pressure Spacer Spool (Riser Spool) for Wellhead Drilling Service

Spacer Spools - Riser Spools are the parts which are often used in the oilfield for wellhead extension,
choke and kill manifold appication, etc. , it is designed and manufactured in accordance with API 6A and API 16A standard, it usually have end connectors of the same size, rated working pressure and design.

Vigor Mework Petroleum Equipment Co., Ltd - VigorPetro manufactures the Spacer Spool / Riser Spool in all sizes and pressure ratings suitable for Wellhead extension, B.O.P. spacing, Choke and Kill Manifold applications. VigorPetro’s customizable spacer spools allow customers to design their ideal spacer spools for reliable and consistent performance on their production system.

Features:

• Integral forged material ensures excellent reliable working performance.
• Flanged, Studded, and Hub Clamp ends are available.
• Full API sizes and pressure ratings .
• Minimize length allows sufficient clearance for wrenches or clamps, unless otherwise specified by the customers.
• Stainless Steel 316L or Inconel 625 corrosion resistant alloy ring grooves are also available.
• Equiped with Lifting Eyes for easy transport.

Specifications:

• Product Name: Spacer Spool, Riser Spool, Driling Spool
• Bore Size: 1-13/16", 2-1/16", 4-1/16", 5-1/8", 7-1/16", 13-5/8", 18-3/4”, 20-3/4", 21-1/4" or customized
• Overall Length(OAL)/Height: As per customers' requirements
• Connection: API 6A Flange, API 16A Clamp, WECO Union
• Standards: API Spec 6A, NACE MR0175, ISO 9001, ISO14001 etc
• Working Pressure: 3000 PSI to 20000 PSI
• Material Class: AA, BB, CC DD, EE, FF
• Material: AISI 4130, AISI 410SS, AISI 4130+INCONEL 625
• Temp Class: PU, LU, KU, PX
• Performance Requirement: PR1, PR2
• Product Specification Level: PSL1, PSL2, PSL3, PSL4
• Application: Wellhead Assembly, Kill Manifold, Choke Manifold, Blowout Preventer, Sand Knockout, Plug Catcher etc
• Paint Color: Red, Blue, or Customized
• Working Medium: Oil, Natural Gas, Mud
• Service: Standard Service, H2S Service

Vigor Mework Petroleum Equipment Co., Ltd - VigorPetro is a professional manufacturer of API 6A Wellhead & Christmas Trees, API6A Gate Valves, API 6A Flanges, API 16A Blowout Preventers, API 16C Choke & Kill Manifolds etc. Aside from the Spacer Spool/Riser Spool, we also  manufacture the Adapter Spools for all client needs.
