Product Details:
Payment & Shipping Terms:
|
| Size: | 1" To 12" | Pressure Rating: | 300lb To 1500lb |
|---|---|---|---|
| End: | RF Flange | Material Class: | ASTM A351 CF8M / CF8 / ASTM A216 WCB |
| Design & Test: | API 598 | Flange Size: | ANSI B16.5 |

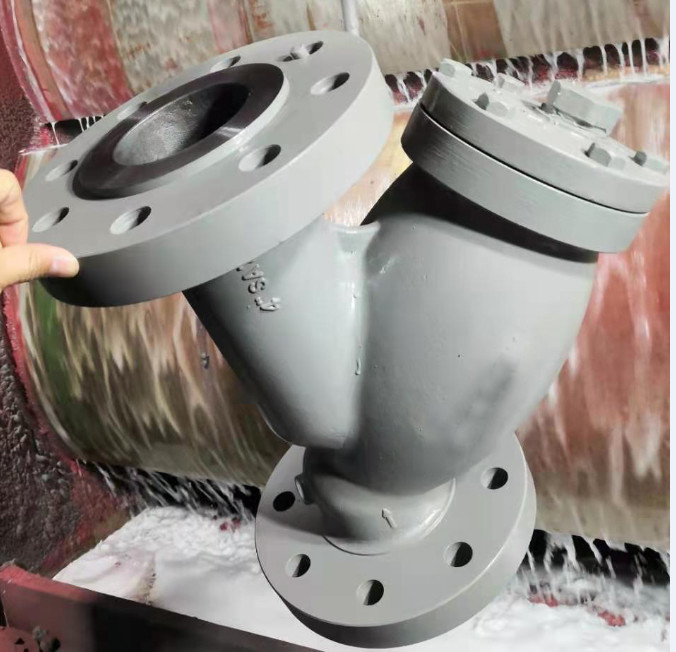

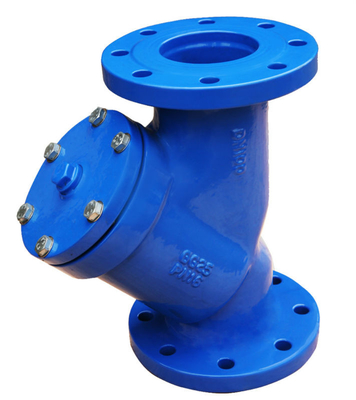

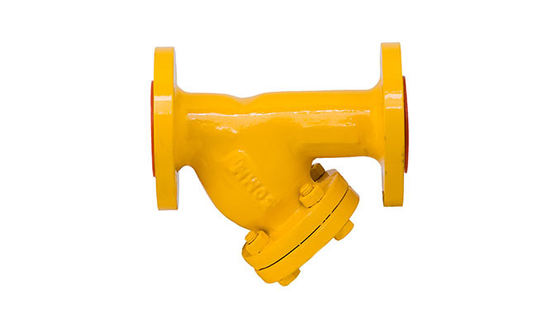

VigorPetro's Y-Type Strainers are typically used in application where the amount of solids to be removed is small, and where frequent clean – out is not required.
They are most commonly used in pressurized lines, gas or liquid, but can also be used in suction or vacuum conditions.
“Y” Strainer mechanically removing solids from flowing liquids, Air, Steam or gases by means of a perforated or wire mesh straining element.
Y-Strainer has the advantage of being able to be installed in either a horizontal or vertical position.
The screening element or “leg” must be on the “downside” of the strainer body so that entrapped solids can be properly collected and held for disposal.
A blow down plug on the drain port will allow clean-out without removal of the screen, and without interrupting the process flow.
FEATURES & OPTIONS
Highly durable that makes it a part of various industrial applications
The affordable rates content our clients to the utmost level
Can be availed in customized specifications
Negligible maintenance
Easy cleaning or replacing the element.
Compact size and Low weight
Low Pressure drop across the filter.
Low Installation and maintenance.
With Drain Arrangement on request
Adequate strength of element and housing
Interchangeability of component with another of same type.
Wire mesh up to 5 Micron
SPECIFICATIONS:
|
Availability [Size] |
DN25 / 25MM / 1" To DN300 / 300MM / 12" |
|
BODY MATERIAL |
ASTM A351 CF8M / CF8 / ASTM A216 WCB |
|
Mesh Material |
CF8 [SS 304] / CF8M [SS 316] / CF3 [SS 304L] / CF3M [SS 316L] |
|
WORKING PRESSURE |
CLASS 150/300/600/1500 |
|
Face to Face |
ANSI B16.5 |
|
FLANGE DIMENSION |
ANSI B16.5 |
|
Pressure Testing |
API 598 |
We are a professional manufacturer of Wellhead Assemblies, Christmas Trees, API6A Gate Valves, Blowout Preventers, Choke Manifolds, Kill Manifolds etc. Aside from Y type Strainer, we also produce and sell Welding Neck Flange, Threaded Flanges, Spacer Spool Flanges, Blind Flanges, Companion Flanges, Target Flanges, Test Flanges, Double Studded Adapter Flanges(DSAF), and Adapter Spools for all client needs.
