SOLID WEDGE SLAB GATE VALVE, 2-1/16 IN 5000 PSI WORKING R24 API 6A PSL 2, API 60K, T24, NACE

China SOLID WEDGE SLAB GATE VALVE, 2-1/16 IN 5000 PSI WORKING R24 API 6A PSL 2, API 60K, T24, NACE supplier
SOLID WEDGE SLAB GATE VALVE, 2-1/16 IN 5000 PSI WORKING R24 API 6A PSL 2, API 60K, T24, NACE supplier SOLID WEDGE SLAB GATE VALVE, 2-1/16 IN 5000 PSI WORKING R24 API 6A PSL 2, API 60K, T24, NACE supplier SOLID WEDGE SLAB GATE VALVE, 2-1/16 IN 5000 PSI WORKING R24 API 6A PSL 2, API 60K, T24, NACE supplier

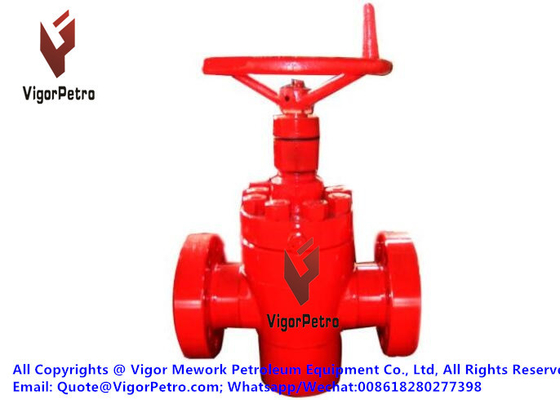

Large Image :  SOLID WEDGE SLAB GATE VALVE, 2-1/16 IN 5000 PSI WORKING R24 API 6A PSL 2, API 60K, T24, NACE

Product Details:

Place of Origin: China
Brand Name: VigorPetro
Certification: API 6A, ISO 9001
Model Number: SOLID WEDGE

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 10-30 Days
Payment Terms: TT
Supply Ability: 100 Set/Month
Contact Now
Detailed Product Description
Size: 2-1/16" Pressure Rating: 5000 PSI
Material Class: DD (DD/EE/FF/HH Availiable) Temp. Class: K-u
PSL: PSL2 PR: PR-1
Operation: Handwheel Design Std.: API Spec.6A 21 Edition

SOLID WEDGE SLAB GATE VALVE, 2-1/16 IN 5000 PSI WORKING R24 API 6A PSL 2, API 60K, T24, NACE

SOLID WEDGE SLAB GATE VALVE, 2-1/16 IN 5000 PSI WORKING R24 API 6A PSL 2, API 60K, T24, NACE



Description:

VALVE, GATE

TYPE : SOLID WEDGE,SLAB
NUMBER OF WAY : -
NOMINAL SIZE : 52.4 MM (2-1/16 IN)
CONNECTION TYPE : FLANGED
PRESSURE CLASS : -
FACE WIDTH : -
STEM TYPE : NON-RISING STEM
BODY MATERIAL : FORGED CARBON/LOW ALLOY STEEL
BONNET MATERIAL : ALLOY STEEL
TRIM MATERIAL : -
RING IDENTIFICATION NUMBER : R24
PRESSURE RATING : 5000 PSI WORKING
BODY SCHEDULE NUMBER : -
APPLICATION : -
DESIGN STANDARD : API 6A PSL 2,API 60K,T24,NACE
DESIGN STANDARD : MR0175
MATERIAL CLASSIFICATION : DD
TEMPERATURE CLASSIFICATION : KU
HAZARD AREA CLASSIFICATION : -
SERVICE FLUID : SOUR OIL & GAS
SEAT TYPE : METAL TO METAL
SEAL/GASKET/PACKING MATERIAL : PTFE STEM PACKING
TEMPERATURE RATING : -75 TO 250 DEG F
ADDITIONAL SPECN : PR1

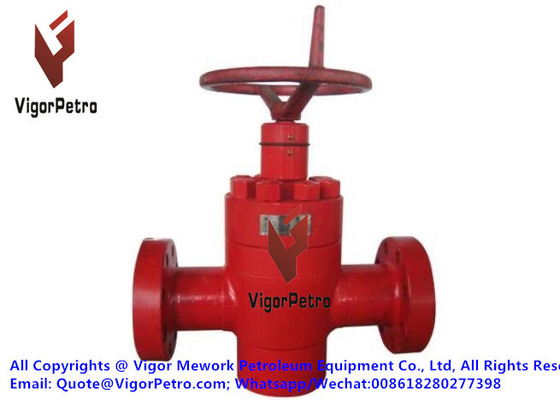

VigorPetro FLS Type Slab Gate Valve

The VigorPetro FLS Type Slab Gate Valve is a full-bore, through-conduit valve available in pressure ratings from 2,000 to 20,000 psi and bore sizes from 1-13/16” to 13-5/8”. The features of bi-directional sealing and none-rising stem making ideal suited for drilling choke and kill manifolds, x-mas trees, and fracturing service. It's Easily equipped with Hydraulic Actuators for Manifold or Subsea service.



SOLID WEDGE SLAB GATE VALVE, 2-1/16 IN 5000 PSI WORKING R24 API 6A PSL 2, API 60K, T24, NACESOLID WEDGE SLAB GATE VALVE, 2-1/16 IN 5000 PSI WORKING R24 API 6A PSL 2, API 60K, T24, NACE



Features and Benefits:

  • Metal-to-Metal Sealing (gate-to-seat, seat-to-body and Body to Bonnet)
  • Two spring-loaded, pressure energized, non-elastomeric lip-seals between each seat to ensure sealing performance.
  • Bi-Directional Sealing
  • Stem Backseat
  • Bearing cap grease fitting allows positive bearing lubrication.
  • A wide range of body and trim material is available to meet various operating conditions.
  • Easily equipped with Hydraulic Actuators for kill line, choke line or x-mas tree.
  • Easy closing and sealing without excessive torque.
  • API 6A Monogrammed.

Available Specication:

Bore Size 1-13/16“ to 13-5/8”
Working Pressure 2,000psi, 3,000psi, 5,000Psi, 10,000psi, 15,000psi, 20,000psi
Temp. Class P-U, L-U, U, K-U, P-X
Material Class AA, BB, CC, DD, EE, FF, HH
PSL PSL1, PSL2, PSL3, PSL3G, PSL4
PR PR1, PR2
Service Standard Service, Sour Service
Standard API 6A, ISO 9001
