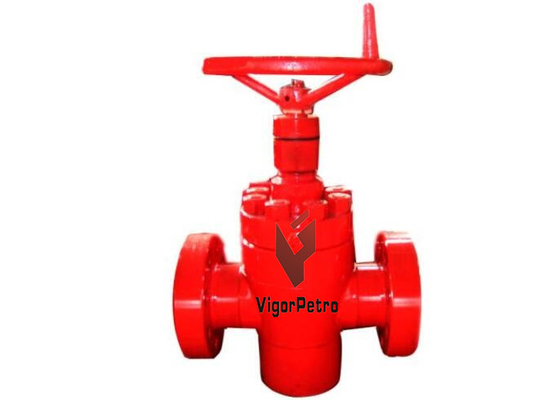

MANUAL GATE VALVE, 3.1/8” 3K, FLS TYPE.

MANUAL GATE VALVE, 3.1/8” 3K, FLS TYPE.

Specification:

VALVE,GATE:
FLANGE ENDS CONNECTION
SIZE: 3-1/8"-3K
DESIGN RATING: 3000 PSI
TEMPERATURE RATING: U
CONNECTION: RTJ RX-39 FLANGED TOP x BOTTOM,C/W HAND WHEELS
BONNET/COVER CONSTRUCTION: FLG BONNET
OPERATED: MANUAL HANDWHEEL
BODY MATERIAL: EE-1.5
OPERATING TEMPERATURE: P+U

TEXT:FOR STANDARD OIL AND GAS SERVICE, FLANGED RTJ (R-39 RING JOINT GASKET), IN ACCORDANCE WITH API 6A LATEST EDITION, PSL-2, PR-2,
TEMPERATURE CLASS 'U', MATERIAL CLASS 'BB' COMPLETE WITH HANDLE WHEEL. SUPPLIER TO PROVIDE RELEVANT CATALOGUES, MATERIAL TEST & PRES
SURE TEST CERTIFICATES AND OTHER DETAILS OF THEIR MATERIAL ALONG WITH THEIR QUOTATIONS. SUPPLIER TO PROVIDE RELEVENT API, ASME AND M
ILL TEST CERTIFICATE ETC AS APPLICABLE.
VALVE,GATE: 4.1/16" 5k TYPE: FLANGE ENDS CONNECTION SIZE: 4-1/16"-5K DESIGN RATING: 5000 PSI TEMPERATURE RATING: U CONNECTION: RTJ RX-39 FLANGED TOP x BOTTOM,C/W HAND WHEELS BONNET/COVER CONSTRUCTION: FLG BONNET OPERATED: MANUAL HANDWHEEL TEXT:FOR STANDARD OIL AND GAS SERVICE, FLANGED RTJ (R-39 RING JOINT GASKET), IN ACCORDANCE WITH API 6A LATEST EDITION, PSL-2, PR-2,TEMPERATURE CLASS 'U', MATERIAL CLASS 'BB' COMPLETE WITH HANDLE WHEEL. SUPPLIER TO PROVIDE RELEVANT CATALOGUES, MATERIAL TEST & PRESSURE TEST CERTIFICATES AND OTHER DETAILS OF THEIR MATERIAL ALONG WITH THEIR QUOTATIONS. SUPPLIER TO PROVIDE RELEVENT API, ASME AND MILL TEST

API 6A High Pressure Slab Gate Valve FL/FLS Type full bore with size range 1-13/16" to 13-5/8”

The VigorPetro FLS Type Slab Gate Valve is a full-bore, through-conduit valve available in pressure ratings from 2,000 to 20,000 psi and bore sizes from 1-13/16” to 13-5/8”. The features of bi-directional sealing and none-rising stem making ideal suited for drilling choke and kill manifolds, x-mas trees, and fracturing service. It's Easily equipped with Hydraulic Actuators for Manifold or Subsea service.

Features and Benefits:

• Metal-to-Metal Sealing (gate-to-seat, seat-to-body and Body to Bonnet)
• Two spring-loaded, pressure energized, non-elastomeric lip-seals between each seat to ensure sealing performance.
• Bi-Directional Sealing
• Stem Backseat
• Bearing cap grease fitting allows positive bearing lubrication.
• A wide range of body and trim material is available to meet various operating conditions.
• Easily equipped with Hydraulic Actuators for kill line, choke line or x-mas tree.
• Easy closing and sealing without excessive torque.
• API 6A Monogrammed.

Available Specication:
