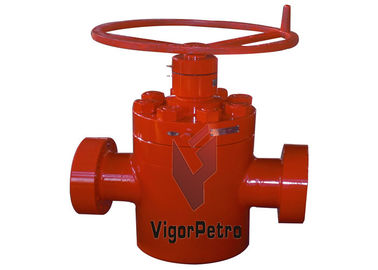

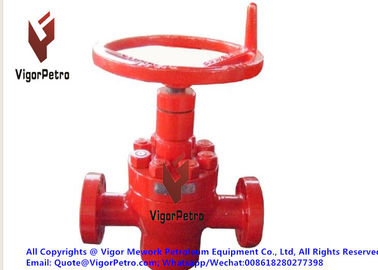

VALVE, GATE 4-1/16"-10K, 10000PSI FLANGE ENDS MANUAL, API6A PSL3 PR2 U EE-1.5 BI-DIRECTIONAL

VALVE, GATE 4-1/16"-10K, 10000PSI FLANGE ENDS MANUAL, API6A PSL3 PR2 U EE-1.5 BI-DIRECTIONAL

Specification:

VALVE,GATE:
TYPE: FLANGE ENDS CONNECTION
SIZE: 4.1/16" – 10,000 PSI WP
DESIGN RATING: 10,000 PSI WP
TEMPERATURE RATING: U
CONNECTION: API BX-155 RING GROOVE FLG
BONNET/COVER CONSTRUCTION: BOLTED FLG BONNET
OPERATED: MANUAL HANDWHEEL
BODY MATERIAL: EE-1.5
OPERATING TEMPERATURE: P+U

TEXT:- NON-RISING STEM WITH BACKSEAT CAPABILITY - BI-DIRECTIONAL - NON-ELASTOMERIC STEM PACKING - METAL-TO-METAL GATE-TO-SEAT AND SE
AT-TO-BODY INTERFACE SEAL - METAL-TO-METAL STEM/BACKSEAT SEAL - STAINLESS STEEL GATE/SEATS/STEM MATERIAL - COMPLETE WITH HANDWHEEL -
FORGED AISI 4130 ALLOY STEEL OR EQUIVALENT BODY/BONNET MATERIAL - MATERIAL CLASS EE-1.5, TEMP CLASS 'U', PSL-3, PR-2 SUPPLIER TO PR
OVIDE RELEVANT CATALOGUES, MATERIAL TEST & PRESSURE TEST CERTIFICATES AND OTHER DETAILS OF THEIR MATERIAL ALONG WITH THEIR QUOTATION
S. SUPPLIER TO PROVIDE RELEVENT API, ASME AND MILL TEST CERTIFICATE ETC AS APPLICABLE.
VALVE,GATE: 4.1/16" 10k TYPE: FLANGE ENDS CONNECTION SIZE: 4.1/16" – 10,000 PSI WP DESIGN RATING: 10,000 PSI WP TEMPERATURE RATING: U CONNECTION: API BX-155 RING GROOVE FLG BONNET/COVER CONSTRUCTION: BOLTED FLG BONNET OPERATED: MANUAL HANDWHEEL TEXT:- NON-RISING STEM WITH BACKSEAT CAPABILITY - BI-DIRECTIONAL - NON- ELASTOMERIC STEM PACKING - METAL-TO-METAL GATE-TO-SEAT AND SEAT-TO-BODY INTERFACE SEAL - METAL-TO-METAL STEM/BACKSEAT SEAL - STAINLESS STEEL GATE/SEATS/STEM MATERIAL - COMPLETE WITH HANDWHEEL - FORGED AISI 4130 ALLOY STEEL OR EQUIVALENT BODY/BONNET MATERIAL - MATERIAL CLASS BB, TEMP CLASS 'U', PSL-3, PR-2, API 6A Latest Edition, SUPPLIER TO PROVIDE RELEVANT CATALOGUES, MATERIAL TEST & PRESSURE TEST CERTIFICATES AND OTHER DETAILS OF THEIR MATERIAL ALONG WITH THEIR QUOTATIONS. SUPPLIER TO PROVIDE RELEVENT API, ASME AND MILL TEST CERTIFICATE ETC AS APPLICABLE.

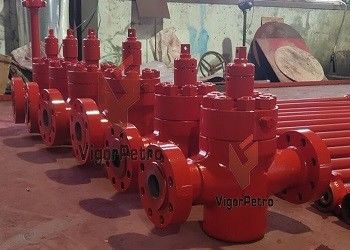

API 6A High Pressure Slab Gate Valve FL/FLS Type full bore with size range 1-13/16" to 13-5/8”

The VigorPetro FLS Type Slab Gate Valve is a full-bore, through-conduit valve available in pressure ratings from 2,000 to 20,000 psi and bore sizes from 1-13/16” to 13-5/8”. The features of bi-directional sealing and none-rising stem making ideal suited for drilling choke and kill manifolds, x-mas trees, and fracturing service. It's Easily equipped with Hydraulic Actuators for Manifold or Subsea service.

Features and Benefits:

• Metal-to-Metal Sealing (gate-to-seat, seat-to-body and Body to Bonnet)
• Two spring-loaded, pressure energized, non-elastomeric lip-seals between each seat to ensure sealing performance.
• Bi-Directional Sealing
• Stem Backseat
• Bearing cap grease fitting allows positive bearing lubrication.
• A wide range of body and trim material is available to meet various operating conditions.
• Easily equipped with Hydraulic Actuators for kill line, choke line or x-mas tree.
• Easy closing and sealing without excessive torque.
• API 6A Monogrammed.

Available Specication:
