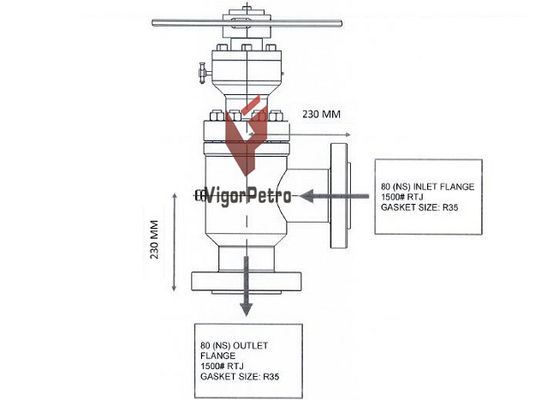

Adjustable Choke, 3-1/16" 10000PSI BX 154 , External sleeve or Cage and plug Trim

Adjustable Choke, 3-1/16" 10000PSI BX 154 , External sleeve or Cage and plug Trim, API 6A PSL3G PR2 PU.

Description: Adjustable Choke, 3-1/16" 10000PSI BX 154, Hand Wheel Operation. 100% Capacity, Linear Flow Characterisition, TC/17 4 PH SS, external sleeve or Cage and plug, or rotating disk. 128/64" Max Orifice, Body/Bonnet: 4130 Alloy Steel, Bleed Valve SS316. API 6A PSL3G PR2, PU.

API6A ASME High Pressure Plug & Cage Control Choke Valve (Angle Choke Valves)

VIGORPETRO plug & cage control choke uses the plug as the controlling element, and throttles the flow on the internal diameter of the ported cage. The ports in the cage are sized and arranged to give the most appropriate combination of controllability and flow capacity for each application.

Plug & cage chokes also are constructed with a solid tungsten carbide plug tip and inner cage for extended resistance to erosion. It may further be configured with a solid tungsten carbide wear sleeve in the outlet of the body to provide enhanced protection in sandy service.This trim also includes a thick metal outer cage to ensure maximum protection against solid impacts from debris in the flow.

Plug & cage control choke features

1. Tungsten carbide plug
2. Solid tungsten carbide cage offers better wear resistance in erosive conditions
3. Metal body-to-bonnet gasket for high pressure containment
4. Few side loading and vibration with Fully guided plug
5. Self-flushing, pressure-balanced ports reduce stem loads
6. Lower operating torque with Heavy-duty thrust bearings
7. Pressure-balanced seals reduce operating forces and enabling greater ease of adjustment
8. Outer metal cage avoids impact damage

Plug & cage control choke Specifications

• ASME Nominal Size: 2", 3", 4", 6", 8", 10"
• API Nominal Size: 2-1/16", 2-9/16", 3-1/8”, 3-1/16", 4-1/16", 5-1/8", 7-1/16", 9"
• ASME Pressure Rating: 600#, 900#, 1500#, 2500#, 4500#
• API Pressure Rating: 2000 PSI, 3000 PSI, 5000 PSI, 10000 PSI, 15000 PSI CWP
• Material Class: AA, BB, CC DD, EE, FF, HH
• Temp Rating: -59°to 177°C(-75°to 350°F)
• API Temperature Classifications: K,L,N,P,R,S,T,U,V,X,Y
• Performance Requirement: PR1, PR2
• Product Specification Level: PSL1, PSL2, PSL3, PSL3G, PSL4
• End Connection: ASME RF Flanged, API RF/RTJ Flanged, Threaded, Hammer Union
• Design Standards: API Spec 6A, API 16C, ASME, ANSI, NACE MR0175
• Working Medium: Petroleum, Natural Gas, Water, Mud, Gas containing H2S, CO2

Typical Industry Applications:

• Oil Production Start-Up/ Shut-Down
• Gas & Condensate Production
• Gas Lift
• Well Testing
• Choke & Kill Manifolds
• Multi-Phase Flows
• Pump Discharge
• Fracturing Clean-up
• FlaringAdditional

VigorPetro is a professional manufacturer of API 6A Wellhead Equipment, API6A Gate Valves, Choke Valves, Check Valve, Ball Valves, DEMCO Gate Valve,  Plug Valves, Blowout Preventers(BOPs), Choke & Kill Manifolds, Flowline products, etc. Aside from the Cage & Plug Chokes, we also offer the External Sleeve Type Choke, Angle Type Choke, Positive / Fixed Choke, Drilling Choke with Hydrualic Actuator and H2 Type Chokes.
