|Pressure:||7500PSI||OEM:||DEMCO, OTECO, BAKKER|
|Material:||AISI AISI 410 SS|
Long Description: Gate Steel/QPQ 410 SS Part number 2139629-02 for Demco DM Gate valves 7500 psi 5"
VigorPetro's DM Series Gate Valves are compatible with the original Cameron DEMCO valves. We can provide both Minor Repair Kit and Major Repair Kit for repair service.
Designed for dependable, heavy duty performance in abrasive service conditions, our DM gate valves are commonly selected for a number of oilfield applications, including:
• Drilling standpipe manifold • Pump manifold block valves • High pressure mud mixing lines
• High pressure drilling system block valves • Wellheads • Well treating and frac service
• Production manifolds • Production gathering systems • Production flow lines
Flanged End Butt Weld End Line Pipe Thread End

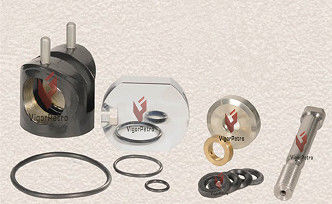

Hammer Union End Major Repair Kits
The seats are designed to provide a positive, tight shut off every closing cycle, even after long exposure to abrasion and scor-ing. Twin metal wear inserts, encapsulated in an elastomer, form a cylindrically shaped plug made up of a gate slot and two flowports. Once closed, line pressure forces the gate up against the downstream port seals which are tested up to 7,500 psi. The 4 in. 5000 Working Pressure (WP) thru 5 x 4 in. 7500 WP valve has a transparent stem cover which protects and reveals gate open/close position. Stem packing is self-adjusting on all sizes
• Water, oil, and gas lines
• Pipelines and manifolds
• Abrasive drilling mud
• Sour gas and crude oil
• Up to 7,500 psi and temperature range of -40°F to 400°F
Standard Trim Includes
• A-487 or AISI 4130 Alloy Steel Body and Bonnet
• Stainless Steel (SS) Stem and Gate
• Steel Buna-N Seats
• 90 Durometer A Buna-N Seals
• Full Port - 2 in., 3 in., 4 in., 4-1/16 in., and 5-1/8 in.
• Regular Port - 5 x 4 in., 6 x 4 in., and 6 x 5 in.
• Screwed End
• Weld End
• Ring Type Joint (RTJ), Flanged End
• Integral Hammer Union
