Product Details:
Payment & Shipping Terms:
|
| Size: | 1-13/16" | Pressure: | 15000 PSI |
|---|---|---|---|
| Material: | ASTM A182 F22 | Std: | API 6A |
| End Connection: | CLAMP CONNECTORS AND FLANGE. GRAYLOC/ G-LOK/ | Temp: | U |
| PSL: | 3 | PR: | 1-2 |

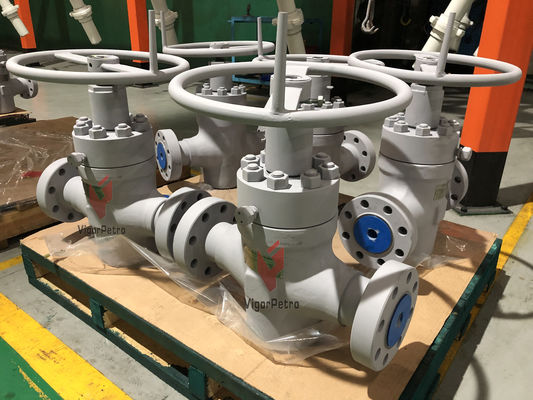

Full Description: 1 13/16 INCH GATE VALVE API 15000 PSI WITH HUB B16 ASTM A182 F55, PIPING CLASS: YY383X,
Valve Type: Gate
Rating: 15000 psi
ENd Connection:HUB CONNECTION
SIZE DN50 (1-13/16")
OPERATOR Handwheel for 2” to 18” and Gear Operated for 20”-24”
Body Cast Carbon Steel – ASTM A216- WCB (VTA)
Bonnet/Cover Cast Carbon Steel – ASTM A216- WCB (VTA)
Wedge/Disc SS316 (VTA)
Stem Seal Gland Packing Group A (VTA)
Body Gasket Spiral Wound Graphite Filled, type SS316 windings, type316 Inner Ring, CS Outer Ring where applicable (VTA)
Bolting ASTM A193 B7 / A 194 2H (FCC)
VALVE CONSTRUCTION Cast Carbon Steel Body and Bonnet, OS&Y, Bolted Gland, Rising Stem & Non-Rising Handwheel, Flexible Wedge (VTA)
