Drillmax Float Valve 4R - Model G Flapper Type

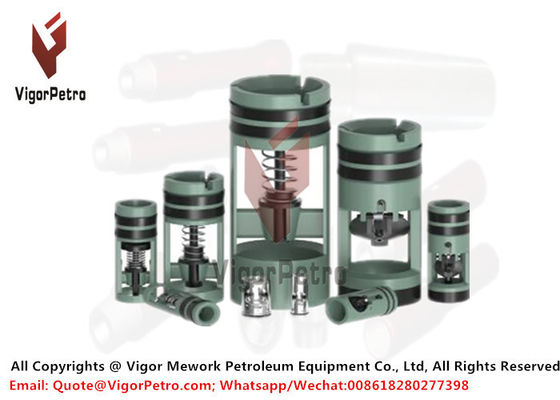

Large Image : Drillmax Float Valve 4R - Model G Flapper Type

Product Details:

Place of Origin:	CHINA
Brand Name:	VigorPetro
Certification:	API 7-1, ISO 9001
Model Number:	Model G

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiable
Packaging Details:	Plywood Box
Delivery Time:	3-5 DAYS.
Payment Terms:	T/T, D/P, D/A, L/C, Western Union
Supply Ability:	1000PCS/MONTH

Contact Now

Detailed Product Description

Size:	4R	Type:	Flapper
Model:	G	Service:	H2S

Drillmax Float Valve 4R - Model G Flapper Type

Specifications: Drillmax Float Valve 4R - Model G Flapper Type

Float Valve Installation:
Drill Pipe Float Valves are easy to install. Simply lubricate the side seal rubbers and slide the float valve into the cavity of the recess of the float sub or drilled out drill collar.

Dimensional Data:

MODEL G I.D. OF VALVE	MODEL F I.D. OF VALVE	Size Valve	D Diameter of Valve	R (D PLUS 1/32) Diameter of Recess for Valve	L Length of Valve	T* Diameter of Recess for TOTCO Spider
N/A	1	1R	1 21/32	1 11/16	5 7/8	1 5/16
1	1 1/4	1F-2R	1 29/32	1 15/16	6 1/4	1 1/2
1 1/4	1 9/16	2F-3R	2 13/32	2 7/16	6 1/2	1 29/32
1 5/8	1 7/8	3F	2 13/16	2 27/32	10	2 7/16
1 5/8	1 7/8	3-1/2IF	3 1/8	3 5/32	10	2 11/16
1 31/32	2 5/16	4R	3 15/32	3 1/2	8 5/16	2 15/16
2 3/16	2 1/2	4F	3 21/32	3 11/16	12	3 1/4
2 1/4	2 3/4	5R	3 7/8	3 29/32	9 3/4	3 3/8
2 7/8	3 1/4	5F-6R	4 25/3	4 13/16	1 13/4	4 9/32
	4 1/18	6F	5 11/16	5 23/32	1 45/8	5 3/16

* If this diameter is the same or smaller than standard tool joint ID disregard it.
