Product Details:
Payment & Shipping Terms:
|
Part: | LEWCO Mud Pump Replacement Parts | Model: | WH-1612, WH-2215, |
---|---|---|---|
Material: | Alloy Steel | Std: | API 7K |
OEM BRAND: | LEWCO |
WH-1612 mud pump parts
ITEM |
QTY |
PART NO. |
DESCRIPTION |
1 |
3 |
D105364 |
DISCHARGE MODULE |
2 |
30 |
ES222 |
STUD, 1.375 6NC V TPR LCK |
4 |
3 |
D105365 |
SUCTION MODULE |
4 |
18 |
ES223 |
STUD 1.750 8UN 21.00 V TPR LCK |
5 |
6 |
A105409 |
PIN, .875 DIA X 2.75 |
6 |
6 |
C164435 |
FUNGE-VALVE COVER |
7 |
6 |
B164436 |
LOCK-VALVE COVER |
8 |
6 |
C164704 |
VALVE COVER |
9 |
6 |
A164705 |
SEAL-VALVE COVER |
10 |
6 |
C164718 |
VALVE GUIDE |
11 |
6 |
A167708 |
BUSHING-VALVE GUIDE |
12 |
12 |
EC220 V |
ALVE GUIDE SCREW |
13 |
72 |
108-0959 |
VALVE COVER STUD |
14 |
18 |
EC199 |
LINER RETAINER SOCKET HEAD CAP SCREW |
15 |
3 |
D167729 |
D167729 LINER LOCK FLANGE |
16 |
3 |
C105368 |
LINER LOCK |
17 |
3 |
108-0964 |
LINER WEAR PLATE |
18 |
6 |
A164707 |
WEARPLATE AND MODULE GASKE |
19 |
2 |
B105389 |
DISCHARGE CONNECTOR |
20 |
2 |
B105390 |
DISCHARGE ADAPTER |
21 |
4 |
B105388 |
BACK-UP RING |
22 |
2 |
108-0531 |
DISCHARGE SPACER FLANGE |
23 |
2 |
108-0674 |
DISCHARGE SPACER FLANGE SEAL |
24 |
4 |
108-0861 |
DISCHARGE CONNECTOR / ADAPTER PACKING |
25 |
2 |
108-0860 |
DISCHARGE CONNECTOR / ADAPTER PACKING |
26 |
2 |
EG108 |
RING GASKET |
27 |
16 |
108-0530 |
STUD, 1.500 6NC 7.500 V TPR LCK |
28 |
16 |
108-1228 |
DISCHARGE SPACER FLANGE SOCKET HEAD CAP SCREW |
29 |
16 |
400-1871 |
DISCHARGE CONNECTOR CAP SCREW |
30 |
24 |
002-7583 |
BOLT HX ,875 9NC 3.00 G8 |
31 |
1 |
D105036 |
SUCTION MANIFOLD, FRONT OR SIDE INLET |
32 |
3 |
108-0234 |
SUCTION MANIFOLD GASKET |
33 |
3 |
EN101 |
PISTON ROD, NUT |
34 |
30 |
EN118 |
1.375 6NC HVY HX NUT |
35 |
88 |
002-5784 |
1.500 6NC HVY HX NUT |
36 |
18 |
EN111 |
1.750 8UN HVY HX NUT |
37 |
10 |
080-1181 |
500 LOCK WASHER |
38 |
24 |
002-1543 |
875 LOCK WASHER |
39 |
6 |
EV116 |
VALVE SPRING |
40 |
REF |
EV142 |
VALVE INSERT |
41 |
6 |
EV190 |
VALVE SEAT |
42 |
6 |
EV178 |
VALVE COMPLETE |
43 |
3 |
SEE CHART |
LINER |
44 |
3 |
SEE CHART |
PISTON ASSEMBLIES |
45 |
3 |
SEE CHART |
PISTON RUBBER KITS |
46 |
3 |
SEE CHART |
LINER GASKETS |
47 |
9 |
C167638 |
BAFFLE STRUCTURE |
48 |
9 |
080-8476 |
BOLT HEX 3/8-16 NC x 1-1/4 GR. 8 |
49 |
9 |
EN125 |
NUT HEX 3/8-16 NC GR. 8 |

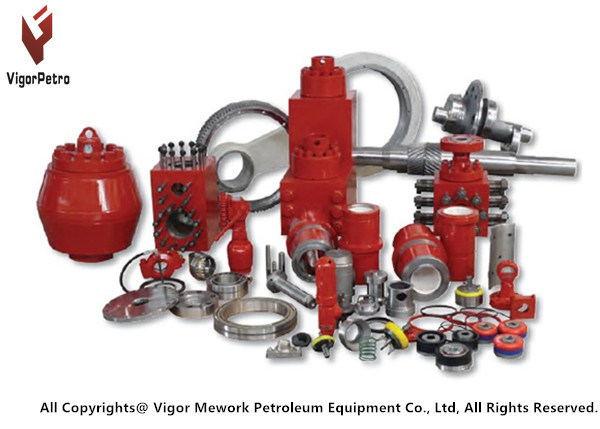

VigorPetro. now offers a full line of premium expendables and service parts for all well-known makes and models of mud pumps that are currently in operation worldwide. These items include various styles of valves, pistons, liners, piston rods, and wear plates, as well as all fluid end seals and gaskets. We also offer a complete selection of fluid cylinder modules and major service components, such as crankshaft assemblies, gear sets,bearings, and connecting rods.
These parts combine the finest materials and manufacturing expertise, including the premium service and support that VigorPetro. has historically provided all our clients. The result is the best performing products available from any manufacturer. Whether you are running Brewster, Emsco, Ideco, Gardner-Denver, National, Oilwell, LEWCO, or Wirth pumps in your rig feet, VigorPetro is now a one-stop shop that can supply all the parts needed to keep these pumps running daily.
When you have questions pertaining to the parts and service offered in this catalog, we are ready to address your needs and welcome your call.
Brand and Model List:
EMSCO:
F-350, F-500, F-650, F-800, F-1000,
FA/FB-1300 FA/FB-1600
GARDNER DENVER:
TEE, PAH, PA-7, PZ-8, PZ-9, PZ-10, PZ-11
NATIONAL
7-P-50, 8-P-80, 9-P-100, 10-P-130,
12-P-160, 14-P-220,
OILWELL
A-850-PT, A-1100-PT, A-1400-PT,
NATIONAL:
BOMCO
F-500, F-800, F-1000, F-1300, F-1600,
OILWELL:
F-160HL, F-22000
T-500, T-800,T-1000, T-1300, T-1600
BOMCO:
IDECO:
A-1700-PT
And other major brands of mud pumps
