|Size Range:||4-1/16"||Pressure Rating:||15000 PSI|
|Material Class:||EENL||Temp. Class:||PX|
|Service:||Sour Service||Design Std:||API 6A|

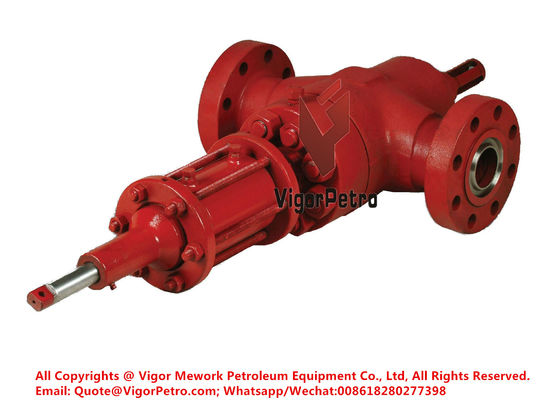

Hydraulic Operated Gate Valve, 4-1/16” 15M,
Latest API 6A standard,
Temp Rating : PX,
Material Class: EENL as per NACE MR0175,
Inconel 625 Inlay : seat pocket, ring groove and bonnet/body
API Monogram, PSL 3 PR 2,
API 20E bolts BSL - 3
Body Material : AISI 4130
The Model SG-22 high-performance, bidirectional slab gate valve is ideal for high pressure, critical serice applications 2,000 through 20,000 psi on welleads, production trees and manifolds.
► Incorporates a non-rising stem to provide safe, dependable service in a variety of environments.
► The full-bore through conduit design maximizes the valve life and virtually eliminates turbulence and pressure drop across the valve.
► The slab gate creates a positive seal across the seats with the use of line pressure.
► One-piece seat provides a metal-to-metal seal against both the gate and the valve body without elastomeric seal backups.
► Threaded bearing cap allows for replacement of the bearings or the stem pin while the valve is under pressure.
► Self-energizing stem packing for minimal maintenance.
► Metal-to-metal stem backseat provides maximum safety in case of stem packing leak and allows for body pressure containment in the instance of packing leakage or body lubrication fitting damage.
One-Piece Seat Pressure-Energized Stem Packing Mechanical Backseat
► Standard Model SG-22 valve meets the requirements of the latest edition of API 6A.
► Materials for H2S service in accordance with NACE MR-01-75 latest edition.
► All testing is accordance with API 6A latest edition, Appendx F, Performance verifications PR-2, temperature class P thu X (-20°F to +350°F)
► Simple design assures low cost.
► Low-cost spare parts readily available.
► Maintenance costs minimal with seats, gate assembly, stem packing and other working parts easily replaced.
► Flanged or screwed outlets.
► Forged body and bonnet.
► Low torqure operation.
► Metal-to-Metal high pressure body/bonnet seal.
► Metal-to-Metal seal seat/body and seat/gate.
► No elastomers.
► Metal-to-Metal backseat seal can be energized regardless of gate position.
► One fitting in the bonnet above the backseat.
► Gate guide retains body lubricants and protects gate surface.
► Maual or actuated operation, compatibel with leading manufacturers' actuators.
Geneal Data Sheet:
|Bore Size||1-13/16“ to 7-1/16“|
|Working Pressure||2,000psi, 3,000psi, 5,000Psi, 10,000psi, 15,000psi, 20,000psi|
|Temp. Class||P-U, L-U, U, K-U, P-X|
|Material Class||AA, BB, CC, DD, EE, FF, HH|
|PSL||PSL1, PSL2, PSL3, PSL3G, PSL4|
|Service||Standard Service, Sour Service|
|Standard||API 6A, API Q1, ISO 9001|
Vigor Mework Petroleum Equipment Co., Ltd - VigorPetro is a professional manufacturer of API 6A Wellhead & Christmas Trees, API6A Gate Valves, API 6A Flanges, API 16A Blowout Preventers, API 16C Choke & Kill Manifolds etc. Aside from the Bidirectional (Bi-Directional) Slab Gate Valve, we also manufacture Cameron FC Style Slab Gate Valve, FL/FLS Style Slab Gate valve, WKM Style Expanding Gate Valve, DEMCO type Mud Gate Valve,e.t.c, for all client needs.
