|Size:||2"||Inlet Conn.:||2.06" 5000PSI Flanged|
|Outlet Conn.:||2.06" 5000PSI Flanged||Material:||Alloy Steel|
|Pressure:||400 To 1500 Psi||Service:||Standard|
VigorPetro Manual Reset Relief Valves are equal to OTECO Type Reset Relief Valve which are sued to protect slush pumps and mud manifolds while guaranteeing greater safety in operation. We offer 2" and 3" Reset Selief Valve with LPT, Weco Union and Flanged end connections and pressure rating from 400psi to 8,000psi. Standard and Sour Gas (H2S) Service type available.
The RRV automatically snaps to a full open position when the predetermined pressure isexceeded or can be manually opened by simply pressing the manual release button. The position of the release button indicates at a glance whether the valve is open or closed. The RRV is designedwith a pressure setting indicator (available in metric units) which canbe adjusted to any setting within the operating range by simply turning a nut on the top of the valve.

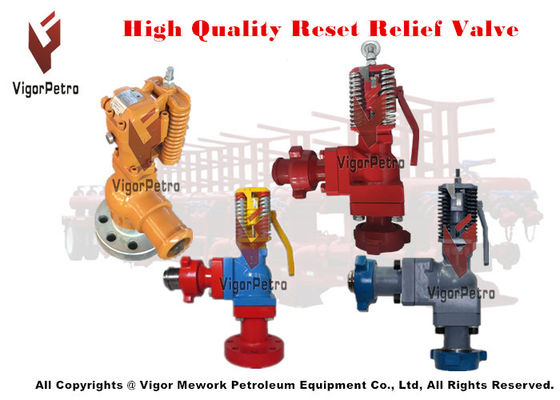

RRV with Weco Union End RRV with API Flanged End
RRV Features & Benefits
Release pressure setting is not affected by vibration during operation.
Utilizes stainless steel piston and cadmium-plated sub for improved corrosion resistance
