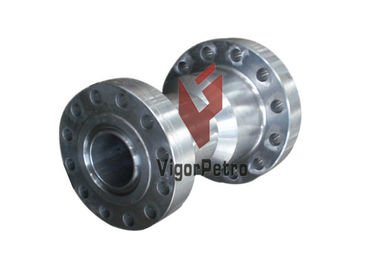

ADAPTER SPOOL 7-1/16" 10K X 13-5/8" 10K 3FT LONG INCONEL 625 INLAID RING GROOVES API 6A PSL3 DD P+X NACE-MR-0175

ADAPTER SPOOL 7-1/16" 10K(10000PSI) X 13-5/8" 10K(10000PSI) 3FT LONG INCONEL 625 INLAID RING GROOVES API6A

Specifiactions:

ADAPTER SPOOL, SPACER SPOOL, RISER SPOOL, 7-1/16” 10K X 13-5/8” 10K 3FT LONG INCONEL 625 INLAID RING GROOVES API 6A PSL3 M/C DD T/C P+X NACE-MR-0175, H2S,

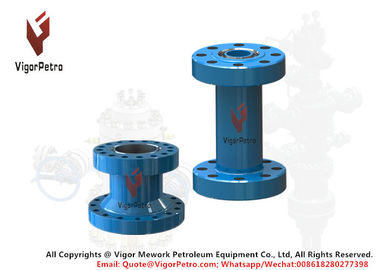

Adapter Spool / Adapter Flange is designed and manufactured as per API 6A standard to connect with different drilling equipment. It may be single piece forged or welded construction which has end connections of different sizes, pressure ratings and/or designs.  Each spool is pressure tested and drift tested prior to dispatch.

The Spool Body and end connections are manufactured from low alloy steel like AISI 4130 or 410SS stainless steel. Application of Weld Overlay with AISI 316L or Nickel alloy 625 on ring Groove or all wetted surface enhance the corrosion resistance ability and improve the product life. Lifting pad-eye or lifting lug is well capable of handling the weight of the spool

Vigor Mework Petroleum Equipment Co., Ltd - VigorPetro designs and manufactures adapter spool (cross over spool) in various sizes from 1-13/16" to 26-3/4" and rated working pressure up to 20000PSI. Customizable Adapter spools are availiable.

Features:

♦ VigorPetro's Adapter Spools have all sizes and pressure ratings used for oilfield applications.

♦ Integral forged material ensures excellent reliable working performance.

♦ Stainless Steel 316L or Inconel 625 corrosion resistant alloy ring grooves are also available.

♦ stocked forging for normal size ensure the shortest delivery time.

Specifications:

Product Name: Adapter Spool, Adapter Flange

Size: 1-13/16" - 26-3/4" or customized

Overall Length(OAL)/Height: As per customers' requirements

Connection: API 6A Flange, API 16A Clamp, WECO Union

Standards: API Spec 6A

Rated Working Pressure: 2000 PSI to 20000 PSI

Material Class: AA, BB, CC, DD, EE, FF, HH

Temp Class: PU, LU, KU, PX

Performance Requirement: PR1, PR2

Product Specification Level: PSL1, PSL2, PSL3

Application: Wellhead Assembly, Choke Manifold, Kill Manifold, Blowout Preventer

Vigor Mework Petroleum Equipment Co., Ltd - VigorPetro is a professional manufacturer of API 6A Wellhead & Christmas Trees, API6A Gate Valves, API 6A Flanges, API 16A Blowout Preventers, API 16C Choke & Kill Manifolds etc. Aside from the Adapter Spool, we also produce and sell Companion Flange, Threaded Flanges, Spacer Spool Flanges, DSA Flanges, Blind Flanges, Target Flanges, Test Flanges and for all client needs.
