Riser Spool, Adapter Spool Flange 9 inch 5,000 psi x 13-5/8 inch 5,000 psi 4ft/6ft Length API6A

China Riser Spool, Adapter Spool Flange 9 inch 5,000 psi x 13-5/8 inch 5,000 psi 4ft/6ft Length API6A supplier
Riser Spool, Adapter Spool Flange 9 inch 5,000 psi x 13-5/8 inch 5,000 psi 4ft/6ft Length API6A supplier Riser Spool, Adapter Spool Flange 9 inch 5,000 psi x 13-5/8 inch 5,000 psi 4ft/6ft Length API6A supplier

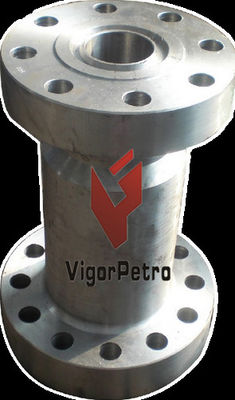

Large Image :  Riser Spool, Adapter Spool Flange 9 inch 5,000 psi x 13-5/8 inch 5,000 psi 4ft/6ft Length API6A

Product Details:

Place of Origin: P.R.CHINA
Brand Name: VigorPetro
Certification: API 6A
Model Number: Adapter Spool Flange

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pc
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 10-20 Days
Payment Terms: T/T
Supply Ability: 100PCS/MONTH
Detailed Product Description
Top Size: 9" 5K Bottom Size: 3-1/8" 5K
Pressure Rating: 5000PSI Material Class: DD AISI 4130
Temp Class: U PSL: PSL3
PR: PR2 Overall Length: 4ft / 6ft
Std: API Spec 6A

Riser Spool, Adapter Spool Flange 9 inch 5,000 psi x 13-5/8 inch 5,000 psi 4ft / 6ft Length API6A



Riser Spool, Adapter Spool Flange 9 inch 5,000 psi x 13-5/8 inch 5,000 psi 4ft/6ft Length API6A

Specifications: Riser Spool, Adapter Spool Flange 9 inch 5,000 psi x 13-5/8 inch 5,000 psi 4ft / 6f Length API6A H2S Service, Nace Mr-0175





Adapter Spool / Adapter Flange is designed and manufactured as per API 6A standard to connect with different drilling equipment. It may be single piece forged or welded construction which has end connections of different sizes, pressure ratings and/or designs.  Each spool is pressure tested and drift tested prior to dispatch.





The Spool Body and end connections are manufactured from low alloy steel like AISI 4130 or 410SS stainless steel. Application of Weld Overlay with AISI 316L or Nickel alloy 625 on ring Groove or all wetted surface enhance the corrosion resistance ability and improve the product life. Lifting pad-eye or lifting lug is well capable of handling the weight of the spool

Riser Spool, Adapter Spool Flange 9 inch 5,000 psi x 13-5/8 inch 5,000 psi 4ft/6ft Length API6ARiser Spool, Adapter Spool Flange 9 inch 5,000 psi x 13-5/8 inch 5,000 psi 4ft/6ft Length API6A

Vigor Mework Petroleum Equipment Co., Ltd - VigorPetro designs and manufactures adapter spool (cross over spool) in various sizes from 1-13/16" to 26-3/4" and rated working pressure up to 20000PSI. Customizable Adapter spools are availiable.



Features:

♦ VigorPetro's Adapter Spools have all sizes and pressure ratings used for oilfield applications.

♦ Integral forged material ensures excellent reliable working performance.

♦ Stainless Steel 316L or Inconel 625 corrosion resistant alloy ring grooves are also available.

♦ stocked forging for normal size ensure the shortest delivery time.



Specifications:

Product Name: Adapter Spool, Adapter Flange

Size: 1-13/16" - 26-3/4" or customized

Overall Length(OAL)/Height: As per customers' requirements

Connection: API 6A Flange, API 16A Clamp, WECO Union

Standards: API Spec 6A

Rated Working Pressure: 2000 PSI to 20000 PSI

Material Class: AA, BB, CC, DD, EE, FF, HH

Temp Class: PU, LU, KU, PX

Performance Requirement: PR1, PR2

Product Specification Level: PSL1, PSL2, PSL3

Application: Wellhead Assembly, Choke Manifold, Kill Manifold, Blowout Preventer



Vigor Mework Petroleum Equipment Co., Ltd - VigorPetro is a professional manufacturer of API 6A Wellhead & Christmas Trees, API6A Gate Valves, API 6A Flanges, API 16A Blowout Preventers, API 16C Choke & Kill Manifolds etc. Aside from the Adapter Spool, we also produce and sell Companion Flange, Threaded Flanges, Spacer Spool Flanges, DSA Flanges, Blind Flanges, Target Flanges, Test Flanges and for all client needs.
