API ASME External Sleeve Control Choke Valve - Angle Choke Valve, Adjustable Choke Valve

China API ASME External Sleeve Control Choke Valve - Angle Choke Valve, Adjustable Choke Valve supplier
API ASME External Sleeve Control Choke Valve - Angle Choke Valve, Adjustable Choke Valve supplier API ASME External Sleeve Control Choke Valve - Angle Choke Valve, Adjustable Choke Valve supplier API ASME External Sleeve Control Choke Valve - Angle Choke Valve, Adjustable Choke Valve supplier API ASME External Sleeve Control Choke Valve - Angle Choke Valve, Adjustable Choke Valve supplier

Large Image :  API ASME External Sleeve Control Choke Valve - Angle Choke Valve, Adjustable Choke Valve

Product Details:

Place of Origin: CHINA
Brand Name: VigorPetro
Certification: ASME, ANSI, API 6A
Model Number: External Sleeve

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 20-40 DAYS
Payment Terms: T/T
Supply Ability: 500 PCS/MONTH
Contact Now
Detailed Product Description
Product Name: External Sleeve Adjustable Choke API Flange Size: 1-13/16" To 7-1/16"
API Pressure Rating: 2000psi - 15000psi ASME Flange Size: 2" - 10"
ASME Pressure: 600# - 4500# Material Class: AA, BB, CC DD, EE, FF, HH
End Connection: Flanged, Threaded, Hammer Union Temp Class: -59°to 177°C(-75°to 350°F) Or PU/LU/KU/PX
PSL: PSL1-PSL4 PR: PR1-PR2
Standard: ASME, API 6A

API & ASME Qualified High Pressure External Sleeve Control Choke Valve (Angle Choke Valves, Adjustable Choke Valves)

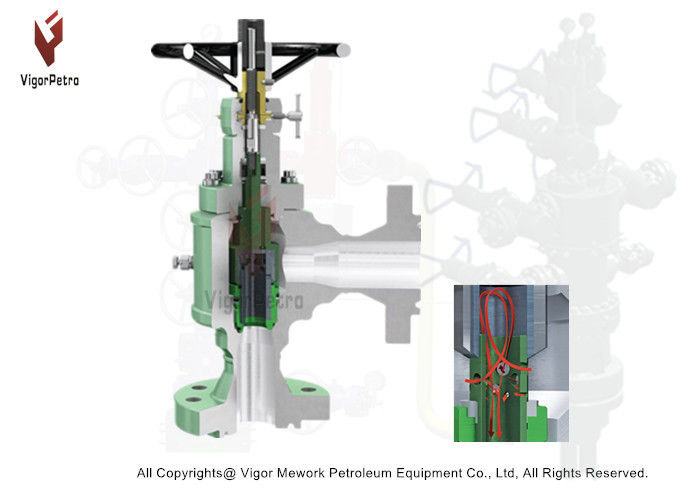

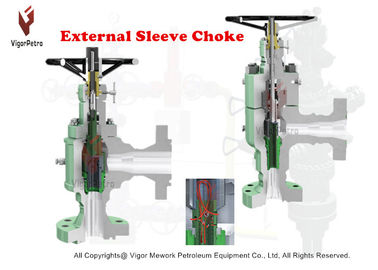

VIGORPETRO external sleeve control choke comes with a sleeve that throttles the flow on the external diameter of the ported cage. The external sleeve trim is particularly suited for lowcapacity and high pressure-drop conditions. The external sleeve is designed specifically for severely erosive service to improve the life of a choke specifically for conditions of high pressure drops and high sand concentrations.

API ASME External Sleeve Control Choke Valve - Angle Choke Valve, Adjustable Choke ValveAPI ASME External Sleeve Control Choke Valve - Angle Choke Valve, Adjustable Choke Valve



External Sleeve control choke features

  1. The Cage and Sleeve are completely made by Tungsten Carbide alloy
  2. Large visual indicator is adjustable by increment of 1/64"
  3. Two-piece stem is threaded and locked, and is removed from wellbore fluids.
  4. Control sleeve and seat sealing surfaces are not directly exposed to the high velocity flow
  5. Lower operating torque with Heavy-duty thrust bearings
  6. Pressure-balanced seals reduce operating forces and enabling greater ease of adjustment

External Sleeve control choke Specifications

  • ASME Nominal Size: 2", 3", 4", 6", 8", 10"
  • API Nominal Size: 2-1/16", 2-9/16", 3-1/8”, 3-1/16", 4-1/16", 5-1/8", 7-1/16", 9"
  • ASME Pressure Rating: 600#, 900#, 1500#, 2500#, 4500#
  • API Pressure Rating: 2000 PSI, 3000 PSI, 5000 PSI, 10000 PSI, 15000 PSI CWP
  • Max orifice: 1"-3".

  • Material Class: AA, BB, CC DD, EE, FF, HH
  • Temp Rating: -59°to 177°C(-75°to 350°F)
  • API Temperature Classifications: K,L,N,P,R,S,T,U,V,X,Y
  • Performance Requirement: PR1, PR2
  • Product Specification Level: PSL1, PSL2, PSL3, PSL3G, PSL4
  • End Connection: ASME RF Flanged, API RF/RTJ Flanged, Threaded, Hammer Union
  • Design Standards: API Spec 6A, API 16C, ASME, ANSI, NACE MR0175
  • Working Medium: Petroleum, Natural Gas, Water, Mud, Gas containing H2S, CO2

Typical Industry Applications:

  • Oil Production Start-Up/ Shut-Down
  • Gas & Condensate Production
  • Gas Lift
  • Well Testing
  • Choke & Kill Manifolds
  • Multi-Phase Flows
  • Pump Discharge
  • Fracturing Clean-up
  • FlaringAdditional

Vigor Mework Petroleum Equipment Co., Ltd - VigorPetro is a professional manufacturer of API 6A Wellhead Equipment, API6A Gate Valves, Choke Valves, Check Valve, Ball Valves, DEMCO Gate Valve,  Plug Valves, Blowout Preventers(BOPs), Choke & Kill Manifolds, Flowline products, etc. Aside from the Sxternal Sleeve Chokes, we also offer the Cage & Plug Type Choke, Angle Type Choke, Positive / Fixed Choke, Drilling Choke with Hydrualic Actuator and H2 Type Chokes.
