API 6A High Pressure Adjustable and Positive Choke Valve for Wellhead and Manifolds

China API 6A High Pressure Adjustable and Positive Choke Valve for Wellhead and Manifolds supplier
API 6A High Pressure Adjustable and Positive Choke Valve for Wellhead and Manifolds supplier API 6A High Pressure Adjustable and Positive Choke Valve for Wellhead and Manifolds supplier API 6A High Pressure Adjustable and Positive Choke Valve for Wellhead and Manifolds supplier API 6A High Pressure Adjustable and Positive Choke Valve for Wellhead and Manifolds supplier API 6A High Pressure Adjustable and Positive Choke Valve for Wellhead and Manifolds supplier

Large Image :  API 6A High Pressure Adjustable and Positive Choke Valve for Wellhead and Manifolds

Product Details:

Place of Origin: CHINA
Brand Name: VigorPetro
Certification: API6A API16A ASME ISO 9001
Model Number: H2/Angle/External Sheeve/Cage&Plug

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 20-40 DAYS
Payment Terms: T/T
Supply Ability: 500 PCS/MONTH
Contact Now
Detailed Product Description
Product Name: Choke Valve Size Range: 1-13/16" To 7-1/16"
Pressure Rating: 2000psi - 20000psi Material Class: AA, BB, CC DD, EE, FF, HH
End Connection: Flanged, Threaded, Hammer Union Temp Class: PU, LU, KU, PX
PSL: PSL1-PSL4 PR: PR1-PR2

API 6A High Pressure Adjustable and Positive Choke Valve for Wellhead and Manifolds Operation.



The choke valve is the major component of Wellhead Christmas tree and Manifold, mainly used for controlling the production rate of an oil well from working pressure 2,000 psi to 20,000 psi. The choke valve can be classified as adjustable choke valve and positive choke valve. The adjustable choke valve is designed to adjust the effective area available, for the flow to control the production rate, through rotating the hand wheel. The positive choke valve is designed to control the production rate through changing flow beans.

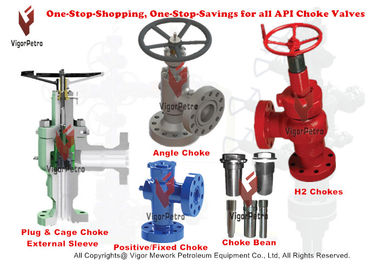

These choke valves are available in different configurations as below:

• Positive or Fixed bean configuration

• Needle and Seat configuration - Typical H2 Style Adjustable Choke

• Cage and Plug type configuration

• External Sleeve Type configuration

• Angle Type configuration

API 6A High Pressure Adjustable and Positive Choke Valve for Wellhead and ManifoldsAPI 6A High Pressure Adjustable and Positive Choke Valve for Wellhead and Manifolds      API 6A High Pressure Adjustable and Positive Choke Valve for Wellhead and Manifolds

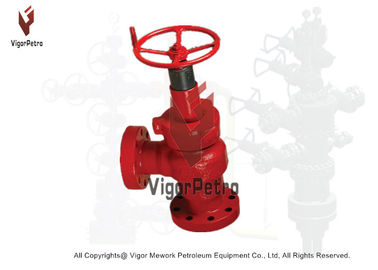

           H2 Style Adj Choke              Angle Choke Valve        Drilling Choke - Hydrualic Actuated

API 6A High Pressure Adjustable and Positive Choke Valve for Wellhead and Manifolds       API 6A High Pressure Adjustable and Positive Choke Valve for Wellhead and Manifolds         API 6A High Pressure Adjustable and Positive Choke Valve for Wellhead and Manifolds

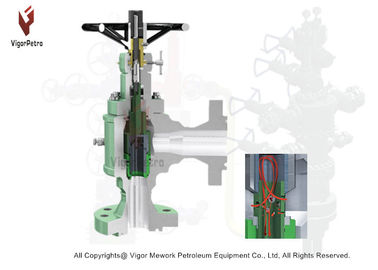

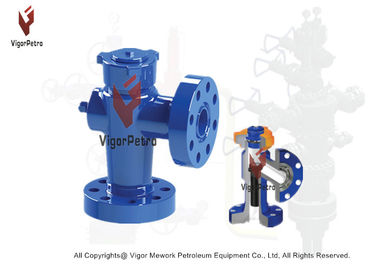

    Cage and Plug Type Choke        Positive / Fixed Choke              Choke Beans

           External Sleeve



Specifications

• Nominal diameter: 2.1/16” ~ 7.1/16”

• Max orifice:1"-3"

• Working pressure: 2000 PSI ~ 20000 PSI

• Working media: oil, natural gas, mud, Water, H2S, CO2

• Working temperature: PU, LU, KU, PX

• Material grades: AA, BB, CC, DD, EE, FF, HH

• Specification level: PLS1 ~ PSL4

• Performance level: PR1 ~ PR2

• End Connection: Flanged, Threaded, Hammer Union

• Standards: API Spec 6A, API 16C, NACE MR0175

• Application: Wellhead Christmas Tree, Choke and Kill Manifolds, High Pressure Pipelines etc.

Features

• Integral and forged valve body with qualified mechanical properties

• Long life and low maintenance

• Body to bonnet contact behind the O-ring seal eliminates bonnet seal extrusion

• A locking device is set on stem

• Ideal for many flow regulating services and easily converted to a positive choke

• The stem of adjustable choke is made of high strength alloy steel. The material has the feature of abrasion resistance, erosion resistance and reliable serviceability

• The valve and seat can be removed by hand, without special tools and without removal of the valve body from the line, by simply removing the bonnet

• Drive has manual, hydraulic and gear transmission forms

• Connections have flange, thread and hub



Vigor Mework Petroleum Equipment Co., Ltd - VigorPetro is a professional manufacturer of API 6A Wellhead Equipment, API6A Gate Valves, Chokes, Blowout Preventers(BOPs), Choke & Kill Manifolds, Flowline products, etc. Our Chokes include: Cameron H2 Style Adjustable and Positive Choke, Angle Choke Valve, External Sheeve Choke Valve, Cage and Plug Type Choke Valve and Hydraulic Actuated Drilling Chokes.
