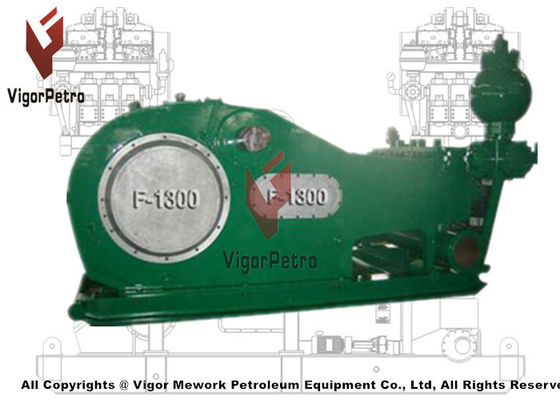

Model: | F1300/F1600 | Part No.: | RS11306.00 |
---|
Assembly drawing RS11306.00
Pinion shaft assembly RS11306.03.00
Crank shaft assembly RS11306.02.00
Splash lubricating system of power end RS11306.06.00
Crosshead assembly RS11306.04.00
Fluid end assembly RS11306.05.00
Discharge bent pipe assembly RS11306.20A.00
Discharge filter screen assembly RS11306.21.00
Discharge pulsation bladder RS11305.10.00
Spray pump RS11305.14.00
1 RS11309.01.00 Frame assy.
2 RS11309.02.00(F1600) Crankshaft assy.-
RS11310.01.00(F1300) Crankshaft assy.-
3 RS11309.03.00(F1600) Pinion shaft assy.-
RS11310.02.00(F1300) Pinion shaft assy.-
4 RS11309.04.00 Crosshead assy.
RS11309.05.00 Fluid End assy.
6 RS11309.06.00 Power End lubrication system
7 RS11309.07.00 Base
8 RS11309.08.00 Spray pump assy.
9 RS11309.009 Pack washer
10 RS11306.11.00 Vent cover
11 RS11310.003 RS nameplate
12 GB818 Screw M4x16
13 RS11309.11.00 Small crane
14 RS11309.12.00 mast-up
15 RS11309.021 Back cover piate
16 RS11306.13.00 Pack washer
17 RS11306.014 Indicator
18 GB827 Screw 3X10
19 RS11306.15.00 Oil indicator assy.
20 RS11306.18.00 Discharge cover
21 RS11310.004 Hole cover.crosshead
22 RS11309.14.00 Washer
23 RS11309.15.00 cover plate assy.
24 Adjust washer
25 B.005 Bolt 1/16-8UNX15
26 N.003 Nut l 1/16-8UN-2B
27 GB93 Spring washer 21
28 B.05.016 Bolt1-8UNCX4
29 N.001 Nut1-8UNC-2B
30 GB93 Sprinq washer24
31 B.001 Bolt 1/2-13UNCx1
32 GB848 Washer 12
33 Rubber strip 40X10X5800
34 B.004 Bolt 5/8-11UNCX2 3/8
35 N.002 Nut5/8-1W-2B
Spring washer 16
37 B.003 Bolt5/8-11UNCX15/
38 RS11306.19.00 KB-75 pulsation dampener
39 YK-150 Shock resistance gauge 60MPa ZG101/2
40 RS11309.16.00 Discharge way spool
JA-3 Safety valve
42 RS11309.17.00 Connect pipe. safety valve
43 SY5279.3-91 Gasket ring R44
44 RS11309.18.00 5-way spool support
Anaerobic oxyen glue for screw
RS-F1600/1300 Part list of Crank assembly
l RS11309.02.001 Main bearing end cover
2 RS11309.02.002(F1600) right bearing sleeve
RS11310.01.001(F1300)
3 RS11309.02.003 washer
4 RS11309.02.004 inner closing ring
5 RS11309.02.05.00(F1600) out dosing ring
RS11309.01.002(F1300) out dosing ring
6 RS11309.02.006(F1600) pitman
RS11309.01.003(F1300) out dosing ring
7 RS11309.02.007 steady ring 1
8 RS11309.02.08.00 crank
9 RS11309.02.009 steady ring II
10 RS11309.02.010(F1600) big gear rim
RS11310.01.004(F1300) big gear rim
11 B02.006 bolt 1 1/2-8UNCx5.25
12 RS11309.02.011 spacer ring
13 RS11309.02.012(F1600) left bearing sleeve
RS11310.01.005(F1300) left bearing sleeve
14 RS11309.02.013(F1600) Retainer ring
RS11310.01.006(F1300) Retainer ring
15 RS11309.02.014 baffle
16 RS11309.02.015 main bear bolt
17 RS11309.02.016 wahser
18 B02.07 bolt 5/8-11uncx4.75
19 RS11306.05.15.00 Nut 1 1/2-8unc
20 B02.002 bolt 5/8-1Iuncx15
21 RS11309.02.017(F1600) eccentricity wheel bearing
RS11310.01.007(F1600) eccentricity wheel bearing
22 RS11309.02.018(F1600) Main bearing
RS11310.01.008(F1300) Main bearing
23 B02.004 screw 5/8-11UNCx4
24 B02.003 bolt 5/*-11UNCx1.75
25 GB848 washer 16
26 GB343 locking wire 1.5
27 GB343 locking wire 3
28 242 AnoEROBIC Oxygen glue for screw
RS-F1600/1300 Small gear shaft assembly
Part list of Small gear shaft assembly
1 RS11309.03.001 Flat KEY
2 RS11309.03.002(F1600) pinion shaft
RS11310.02.001(F1300) pinion shaft
3 RS11309.03.003 antifriction sleeve
4 RS11309.03.004 End cover
5 RS11309.03.005 sealing wahser
6 RS11309.03.006 sealing wahser
7 RS11309.03.007 bearing sleeve
8 RS11309.03.008 retainer ring
9 RS11309.03.009 sealing wahser
10 RS11309.03.10.00 Accumulator tray
11 RS11309.03.011 oil seal
12 RS11309.03.012 bearing 4G32844H
13 RS11309.03.013 Flange
14 B03.002 bolt 1/2-13UNC x 1 3/8
15 B03.003 bolt 7/8-9UNCx2
16 GB93 spring washer 22
17 GB93 Spring wahser 12
18 B02.002 Bolt 5/8-11uncX 1 3/4
19 GB93 spring washer16
Part list of Crosshead assembly
1 RS11309.04.001 crosshead
2 RS11309.04.002 Top guiding plate
3 RS11309.04.003 washer
4 RS11309.04.004 adjust washer
5 RS11309.04.005 Filling box
6 RS11309.04.006 oii-seai ring
7 RS11309.04.007 oil seal
8 RS11309.04.008 lock spring
9 RS11309.04.009 Mudquard
10 RS11309.04.010 internediate rod
11 RS11309.04.011 cross head pin
12 RS11309.04.012 seal washer
13 RS11309.04.013 bottom guiding piate
14 RS11309.04.014 baffle
15 RS11309.04.015 cross head bear
16 RS11306.041004 joint NPT3/8
17 B04.003 bolt 1-8UNCX2 1/4
18 B04.002 bolt 1-8UNCX2 1/2
19 RS11306.04.009 fixed plate
20 B04.004 screwl-8UNCX2.5
21 GB4240 lock steel wire
22 GB34521 O ring 125X7
23 GB34521 O ring 160X7
24 GB34521 O ring 190X3.55
25 B04.005 bolt 3/8-16UNCX1
26 GB93 spring washer 10
27 B04.006 bolt 3/4-10UNCX2.5
28 242 glue sealing glue
Part list of Fluid end assembly
1 RS11309.05.01.00 [vUnder
2 RS11309.05.002 flange
3 RS11309.05.003 cylinder cover
4 RS11309.05.04.00 inserter
5 RS11309.05.05.00 guiding device
6 RS11309.05.06.00 pluq
7 RS11309.05.007 locating plate
8 RS11309.05.008 seaiinq rinq
9 RS11309.05.009 discharge pipe
10 RS11306.05.013 spring
11 RS11309.05.10.00 valve Assen.
12 RS11309.05.011 sealing ring
13 RS11309.05.012 vaive 匚over
14 RS11309.05.013 sealing ring
15 RS11309.05.014 wear plate
16 RS11309.05.015 fianqe
17 RS11309.05.016 end cover
18 RS11309.05.017 Piston rod
19 RS11309.05.18.00 snrav nine
20 RS11309.05.019 iockinq rinq
21 RS11309.05.020 cylinder sleeve
22 RS11309.05.021 clip assy.
23 RS11309.05.022 end 匚ovpr
24 RS11309.05.023 piston
25 RS11309.05.024 suck pipe
26 RS11309.05.025 washer
27 RS11306.05.010 guiding device(upper)
28 B05.010 bolil 1/P-8UNX10 3/8
29 RS11309.05.026 baffle
30 B05.002 bolt 3/8-16UNCX3/4
31 GB3452.1-82 O ring 38.7X3.55
32 RS1306.05.015.00 piston nut
33 RS11306.05.028 air case
34 T05.04 Fianaed I
35 T05.05 Flanaed II
36 T05.001 Plug NPTI 1/2
37 B05.011 bolt 11/2-8UNCX221/8
38 T05.002 suck baffle
39 T05.003 discharqed baffle
40 RS11309.05.027 Gasket rinq39
41 N05.001 bolt 1 1/2-8UNC
42 GB3452.1-82 O ring 95X5.3
43 GB3452.1-82 O ring 200X7
44 B05.003 bolt 7/8-9UNCx2.5
45 GB3452.1-82 O ring 185X7
46 GB3452.1-82 O ring 345X7
47 N001 Nut 1-8UNC-2B
48 B05.004 Nut 1-8UNCX3.5
49 GB4240-84 steel wire 1.6
50 277 Glue277
51 Q/ZB251 hub 2 1/4
Part list of Power end assembly
1 GB5628.1-85 Pipe joint A10
1 GBS629.1-85 Pipe joint A8
3 RS11306.06.06.05.00 Double pipe clamp
4 GB1527-87 Copper pipe 10×1956
5 GB1527-87 Copper pipe 8×1956
6 RS11309.06.001 support seat
7 washer
8 T06.001 joint NPT 1/4-NPT 1/4
9 Y60-Z Gauge 0-0.6Mpa NPT 1/4
11 2SGear oii pump
11 609 or 680 Setting glue
12 GB1527-87 Coper pipe 8X1245
13 RS11309.06.02.00 pipe clamp 12
14 GB1527-87 Coper pipe 8X813
15 RS11306.06.02.00 pipe damp 8
16 RS11309.06.03 bean
17 JB/ZQ4410-86 right angle joint A8
18 B.06.001 Bolt 1/4-20uncX 3/4
19 GB93-87 Spring washer 6
20 GB1527-87 Copper pipe 10×838
21 RS11306.06.004 Seat III
22 T06.003 Elbow 90 NPT 1/4-NPT3/8
23 GB1527-87 Coper pipe 8X762
24 GB1527-87 Coper pipe 8X1016
25 GB1527-87 Coper pipe 8X1194
26 GB1527-87 Coper pipe 8X508
27 GB1S27-87 Coper pipe 8X229
28 T06.002 Pluq NPT1/4″
29 GB1527-87 Coper pipe 8X915
30 JB/ZQ4410-86 right angle joint A10
31 RS11309.06.004 joint 45
32 JB/ZQ4408-86 Right angle joint A12
33 GB1527-87 Coper pipe12x305
34 RS11309.06.05.00 Pipe clamp 10
35 GB1527-87 pipe clamp 12X610
36 RS11306.06.13.00 fuel filter
37 JB/ZQ4408-86 right angle joint A16
38 GB1527-87 Coper pipe 16X331
39 GB1527-87 Coper pipe 16X686
40 RS11306.06.007 Seat III
41 JB/ZQ4408-86 right angle joint A8
42 YYFJ-L20 overflow valve
43 JB/ZQ4410-86 right angle joint A16
44 B.06.002 Bolt 3/8-16UNC x 1 5/8
45 GB93-87 Spring Washer 10
46 RS11306.06.011 square key
47 RS11306.06.08.00 Gear Assy
48 RS11306.06.09.00 Pipe clamp II 8
49 GB1527-87 Coper pipe 8X16H
50 GB1527-87 Coper pipe 8X2311
51 GB1527-87 Coper pipe 8X305
52 JB/ZQ4408-86 Right angle joint A10
Part list of Spray pump assembly
Iten Part No, Description
1 RS11309.08.0011/001A guard cover
2 RS11309.08.002 belt pulley
3 RS11306.08.13.00 seat
4 RS11306.08.017 flange NPT1 1/2
5 RS11306.08.003 90°elbow joint NPT 2 1/2
6 RS11306.08.004 joint NPT1 1/2
7 clamp
8 joint NPT1 -G1
9 RS11306.08.011 Combined pipe
10 HG4-761 hose L=750
11 RS11306.08.005 joint NPT2 1/2
12 GB/T14626 90°elbow joint NPTl 1/2
13 RS11309.08.003 pup jointNPT 2 1/2-NPT 2 1/2
14 RS11306.08.20.002 joint NPT1
15 RS11309.08.004 connect pipe NPT1
16 RS11309.08.05.00 water box
17 RS11309.08.06.00 Water box head
18 RS11309.08.007 joint NPT2 1/2
19 Bail valve G1
20 RS11306.08.008 90°eibow NPT1
21 B.08.001 screw3/8-16UNCXl
22 RS11306.08.014 connection plate
23 B.08.002 bolt 5/8-11UNCX1 1/8
24 GB93 spring washerl6
25 GB95 fiat washer 16
26 B.08.003 bdtl/P-13UNCX1 5/8
27 GB95 fiat washer
28 GB93 spring washerl2
29 B.08.004 boltl/P-13UNCXP 3/8
30 N.08.001 bolt 1/2-13UNC
31 RS11306.08.016 washer
32 RS1131G8.015 flange NPT1″
33 Spray punp
34 RS11306.08.12.00 support
35 RS11306.08.019 welding plate
36 RS11306.08.20.00 three way nanifold
37 GB1171 V belt A3708
Part list of Discharge five way spool assembly
1 TJJ01 flange 5 1/8
2 RS11309.16.01.00 five way spool
3 RS11309.16.002 5 1/8 blind flange III
4 RS11309.16.003 5 1/8 blind flange II
5 RS11309.16.04.00 filter pipe
6 SY5279.3-91 ring gasket
7 B.16.001 bolt 11/2-12UNF-8UN
8 N05.001 nutl 1/2-8UNC
9 RS11309.16.005 elbow NPT 2
10 RS11309.09.010 sealer
11 RS11309.16.006 gauge joint NPT 1 1/P
12 T.05.001 pluge NPT 1 1/2
13 RS11309.16.007 flange
14 B.16.002 bolt 5/8-10UNCX2.5
15 GB93 Spring washer 20
16 glue
Part list of Dampener pulsation assembly
1 SY5279.3-91 Gasket R39
2 RS11306.19.001 Bottom plug
3 Gas bag
4 RS11306.19..02.001 Body
5 RS11306.19.003 Cover
6 RS11306.19.004 T-Joint NPT 1/4
7 RS11306.19.004 Joint
8 RS11306.19.06.00 Pressure gauge cover asse
9 PJC1-L8 Exhaust Valve
10 Y-60 Pressure gauge 0-25Mpa
11 GB/T1230 Washer 14
12 JZR3-L8 Right-angle break valve
13 B.19.001 Bolt 1 1/2-12UNF-8UN
14 N.05.001 Nut 1 1/2-8UN-2B
15 B.19.002 Bolt 1 1/4-12UNF-8UN
16 N.19.001 Nut 1 1/4-8un-2b
RS-F1600/1300 Hose assembly of dampener pulsation
1 RS11306.25.6.10.001 Nut
2 RS11306.25.6.10.002 Seale Joint
3 RS11306.25.6.10.003 Type C soft pipe M14x1.5-d=6.2
4 RS11306.25.6.10.003 Joint
5 RS11306.25.6.10.004 Sealer
6 RS11306.25.6.10.005 Plug
Vigor Mework Petroleum Equipment Co., Ltd - VigorPetro offers a full line of premium expendables and service parts for all well-known makes and models of mud pumps that are currently in operation worldwide.
Mud Pump Model:
Bomco: F-500, F-800, F-1000,F-1300, F-1600,F-1600HL, F-2200HL
Emsco: F-500, F-800, F-1000, FB-1300, FB-1600, FA-1600, FA-1300, FC-1600, FD-1600 D-300/500, D-375, D-700
National: 7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-P-220, JWS-340, JWS-400
Oilwell: A-850-PT, A-1100-PT, A-1400-PT,A-1700-PT
Ideco: T-500, T-800, T-1000, T-1300, T-1600
Gardner Denver: PZ-7, PZ-8,PZ-9,PZ-10, PZ-11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP
LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600
Wirth Mud Pump: TPK1000, TPK1600, TPK 2000
Russian Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L,
WEATHERFORD/Ellis Williams: E-447, E-2200, W446, W440
Drillmec: 9T1000, 12T1600,7TS600,10D2C, 8D1S
Romania: 3PN-1000, 3PN-1600, 3PN-1300, 3PN-2000
OPI: 700-HDL | 1000-HDL
Any enquiry please contact us by email: Quote@VigorPetro.com or Kevin.Dai@VigorPetro.com.
Visit our website: www.vigorwellheadvalve.com or www.VigorPetro.com for more products information.
WhatsApp/Wechat:+86 18280277398
Contact Person: Mr. Kevin
Tel: 86-18280277398
Fax: 86-028-82007766
