Product Details:
Payment & Shipping Terms:
|
| Size Range: | 3-1/16" | Pressure Rating: | 15000PSI |
|---|---|---|---|
| Material Class: | EENL | Temp. Class: | PX |
| PSL: | PSL3 | PR: | PR2 |
| Service: | Sour Service, STD Service | Design Std: | API 6A |

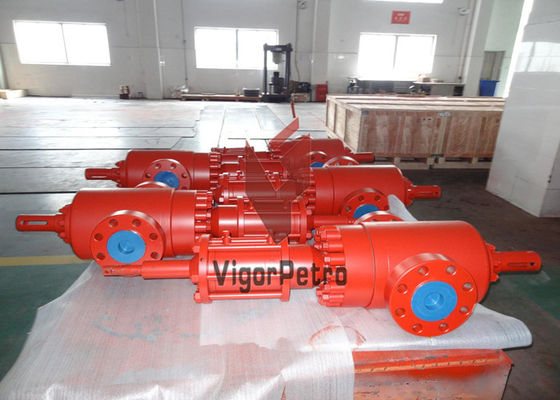

Technical Data: Hydraulic Operated Gate Valve, 3-1/16” 15M, Latest API 6A standard, Temp Rating : PX, Material Class: EENL as per NACE
MR0175, Inconel 625 Inlay : seat pocket, ring groove and bonnet/body sealing area, API Monogram, PSL 3 PR 2, API 20E bolts
BSL - 3, Body Material : AISI 4130
VigorPetro's FC style Hydraulic gate valves are available in a multitude of variations for a variety of wellhead, manifold and fracture applications. We offer an impressive selection of valve sizes from 2-1/16" to 7-1/16", pressure raitings from 2000psi to 20000psi, trim levels from AA to HH, product specification levels from PSL1 to PSL3G, temperature classes, performance requirements and ring type joint inlays.
The slab-gate design along with body bushings and seat rings of this type FC hydraulic gate valve creates a reliably metal-to-metal seal.
VigorPetro Hydraulic Gate Valves' feature:
1. Forged or Cast Body & Bonnet,
2. Metal-to-Metal seal, gate to seat, seat to body, bonnet seal and stem backseat.
3. Bi-directional Sealing,
4. All internal parts can be inline changed.
5. Easy maintaining and disassembling.
6. Optional overpressure protection, compound-springs design for improving its stability.
Geneal Data Sheet:
|
Bore Size |
1-13/16“ to 7-1/16“ |
|
Working Pressure |
2,000psi, 3,000psi, 5,000Psi, 10,000psi, 15,000psi, 20,000psi |
|
Temp. Class |
P-U, L-U, U, K-U, P-X |
|
Material Class |
AA, BB, CC, DD, EE, FF, HH |
|
PSL |
PSL1, PSL2, PSL3, PSL3G, PSL4 |
|
PR |
PR1, PR2 |
|
Service |
Standard Service, Sour Service |
|
Standard |
API 6A, API Q1, ISO 9001 |
VigorPetro also carries a wide range of common parts for Cameron Model F and FC hydraulic gate valves. Proven to stand up to abrasive environments in pressures from 2,000 to 15,000 psi– our F and FC hydraulic gate valve parts are tested for reliability and durability. From gates, seats and stems to seal rings, bearings and pins – Contact VigorPetro today for an assessment of your needs.
Vigor Mework Petroleum Equipment Co., Ltd - VigorPetro is a professional manufacturer of API 6A Wellhead & Christmas Trees, API6A Gate Valves, API 6A Flanges, API 16A Blowout Preventers, API 16C Choke & Kill Manifolds etc. Aside from the Bidirectional (Bi-Directional) Slab Gate Valve, we also manufacture Cameron FC Style Slab Gate Valve, FL/FLS Style Slab Gate valve, WKM Style Expanding Gate Valve, DEMCO type Mud Gate Valve,e.t.c, for all client needs.
