Safety Valve –Model No 1737WB , Tag No D02,Location Steam Drum, Set Pressure 103 KSC, Operating Pressure 95.30 KSC

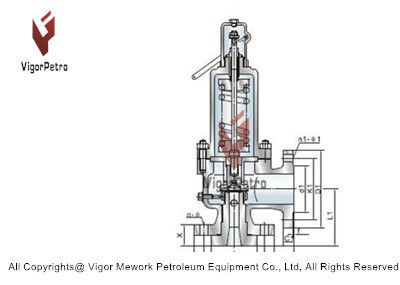

Large Image : Safety Valve –Model No 1737WB , Tag No D02,Location Steam Drum, Set Pressure 103 KSC, Operating Pressure 95.30 KSC

Product Details:

Place of Origin:	CHINA
Brand Name:	VigorPetro
Certification:	API, ISO
Model Number:	Model No 1737WB

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negotiable
Packaging Details:	Plywood Box
Delivery Time:	20-30 days
Payment Terms:	T/T
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Inlet Size:	2.5" BW	Outlet Size:	6" 1500# RF
Body Material:	WCB	Cap Type:	BOLTED
Modle:	Model No 1737WB

Safety Valve –Model No 1737WB , Tag No D02,Location Steam Drum, Set Pressure 103 KSC, Operating Pressure 95.30 KSC, Design Pressure 103KSC, Sizing Base ASME sec-1,Butt Welded & RF, Inlet size 2.5”,Outlet size 6”,Maximum Relieving capacity 79393 kg/hr,lift 11.43mm,Body /bonnet A216Gr.WCB,Disc 13% Cr stainless steel, Spindle SS316,Spring Alloy steel, Accessories Plain lever, Test gag, Spring cover , Hydro test plug.

Safety Valve –Model No 1737WB , Tag No D02,Location Steam Drum, Set Pressure 103 KSC, Operating Pressure 95.30 KSC

Specifications:

Safety Valve –Model No 1737WB , Tag No D02,Location Steam Drum, Set Pressure 103 KSC, Operating Pressure 95.30 KSC, Design Pressure 103KSC, Sizing Base ASME sec-1,Butt Welded & RF, Inlet size 2.5”,Outlet size 6”,Maximum Relieving capacity 79393 kg/hr,lift 11.43mm,Body /bonnet A216Gr.WCB,Disc 13% Cr stainless steel, Spindle SS316,Spring Alloy steel, Accessories Plain lever, Test gag, Spring cover , Hydro test plug.

Any enquiry please contact us by email: Quote@VigorPetro.com or Kevin.Dai@VigorPetro.com.

Visit our website: www.VigorWellheadValve.com or www.VigorPetro.com for more products information.

WhatsApp/Wechat:+008618280277398

Contact Details

Vigor Mework Petroleum Equipment Co., Ltd

Contact Person: Mr. Kevin

Tel: 86-18280277398

Fax: 86-028-82007766

Other Products

Reset Relive Valve, Size: 3" with 3.125" 5000# RJ Flanged Inlet & Outlet, Relief Range: 1500PSI - 5000PSI, OTECO EQUAL

Size: 3"
Inlet Conn.: 3.125" 5000# RJ Flanged
Outlet Conn.: 3.125" 5000# RJ Flanged
Material: Alloy Steel

VALVE CHECK PISTON 2" 1500# RTJ FLANGE, A105 BODY SS TRIM, NACE STD. MR-01-75 ASME 16.34,API 598 standards

Size: 2”
Pressure: 1500#
Temp Class: P+X
Material Class: DD or EE

DEMCO VALVE, BUTTERFLY 8 IN 200 PSI SERIES NE-C LUG TYPY, P/N # 221255115311

Product: Butterfly Valve
Body type: Lug
Series: NE-C
Size: 8"

VALVE, BUTTERFLY WAFER 3 IN NE-C 200 PSI , DEMCO VALVE, P/N# J022121-1215311

Product: Butterfly Valve
Body type: Lug
Series: NE-C
Size: 3"

VALVE, BUTTERFLY 3 IN NE-C LUG TYPE RESI, DEMCO VALVES, P/N# J022121-5124311

Product: Butterfly Valve
Body type: Lug
Series: NE-C
Size: 3"
