4" FLANGED CROSSOVER WITH 3" FIG 1502 MALE THREADED FITTING ASTM A694 GR F52 2500#

Customer Reviews
Thanks for your hard working for our order for the Wellheads and Valves, Your professional service , quality products and competitive price are very impressive.

—— Mr. Rodrigo

VigorPetro is a reliable and professional partner. We've been using their gate valves, wellhead components as well as the flowlines since 2005, Very impressive. My honor to work with your guys.

—— Omar Kumar

I'm Online Chat Now

4" FLANGED CROSSOVER WITH 3" FIG 1502 MALE THREADED FITTING ASTM A694 GR F52 2500#

China 4" FLANGED CROSSOVER WITH 3" FIG 1502 MALE THREADED FITTING ASTM A694 GR F52 2500# supplier
4" FLANGED CROSSOVER WITH 3" FIG 1502 MALE THREADED FITTING ASTM A694 GR F52 2500# supplier 4" FLANGED CROSSOVER WITH 3" FIG 1502 MALE THREADED FITTING ASTM A694 GR F52 2500# supplier 4" FLANGED CROSSOVER WITH 3" FIG 1502 MALE THREADED FITTING ASTM A694 GR F52 2500# supplier

Large Image :  4" FLANGED CROSSOVER WITH 3" FIG 1502 MALE THREADED FITTING ASTM A694 GR F52 2500#

Product Details:

Place of Origin: CHINA
Brand Name: VigorPetro
Certification: API 6A, ISO, AMSE
Model Number: 4" 2500# x 3" Fig 1502

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: US$ 100- US$500 / PC
Packaging Details: Plywood Box
Delivery Time: 10 DAYS
Payment Terms: T/T, T/T
Contact Now
Detailed Product Description
Name: Flange Crossover Flange Size: 4" 2500# RTJ
Weco Size: 3" Fig 1502 Male C/w Plug Matetrail: ASTM A694 GR F52 Or AISI 4130
Material Class: EE Temp.Class: U

4" FLANGED CROSSOVER WITH 3" FIG 1502 MALE THREADED FITTING ASTM A694 GR F52 2500#

4" FLANGED CROSSOVER WITH 3" FIG 1502 MALE THREADED FITTING ASTM A694 GR F52 2500#

Technical Specification:

4" FLANGED CROSSOVER WITH 3" FIG 1502 MALE THREADED FITTING, MOC: ASTM A694 GR F52/AISI 4130, RATING: 2500#

Size 1 (4", 2500# ASME B16.5 RTJ) X Size 2 (3 Fig 1502 male threaded fitting with cap)- Flange body thickness / Inside Diameter (21.8mm / 70.7mm)

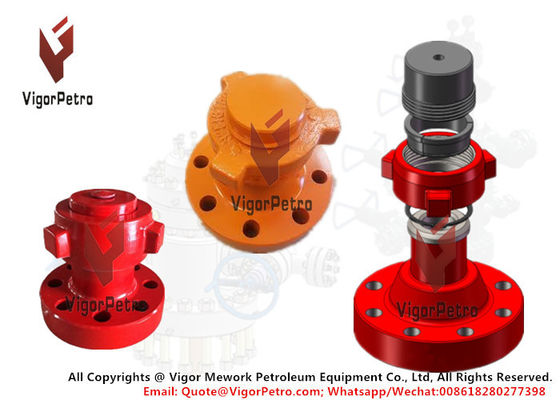

VigorPetro's WECO Union Adapter Flanges are widely used in connection of different connectors for the oilfield wellhead, manifold, frac equipment etc. Weco Flanges are fully designed, manufactured, and tested in accordance with API 6A and API Spec Q1 standards. The standard material is high quality integral forged AISI 4130 alloy steel, AISI 410 Stainless Steel and other material are available upon customer's request.

We can also supply the Weco Adapter Flange with a Blacking Plug (Blind Male or Blind Female Plug) c/w 1/2” NPT Port.

Specifications:

Product Name Weco Flange, Adpter Flange, Union Falnge
Flange Size 1-13/16", 2-1/16", 2-9/16", 3-1/16", 3-1/8", 4-1/16", 5-1/8", 7-1/16“ or Customized
Weco Size 1", 2", 3", 4"
Weco Conection Fig 206, Fig 602, Fig1002, Fig1502, Fig 2002, Fig 2202
WorkingPressure 2000PSI, 3000PSI, 5000PSI, 10000PSI, 15000PSI, 20000PSI
Material AISI 4130, AISI 410SS, INCONEL 625, or as per customers' requirements
Temp. Class PU, LU, KU, PX
Material Class AA, BB, CC, DD, EE, FF, HH
PSL PSL1, PSL2, PSL3, PSL3G, PSL4
PR PR1, PR2
Standard API 6A 21TH, NACE MR0175
Application Wellhead, Manifolds, Frac, Pipe Connection



We are a professional manufacturer of Wellhead Assemblies, Christmas Trees, API6A Gate Valves, Blowout Preventers, Choke Manifolds, Kill Manifolds etc. Aside from API6A Weco Union Adapter Flange, we also produce and sell Welding Neck Flange, Threaded Flanges, Spacer Spool Flanges, Blind Flanges, Companion Flanges, Target Flanges, Test Flanges, Double Studded Adapter Flanges(DSAF), and Adapter Spools for all client needs.
