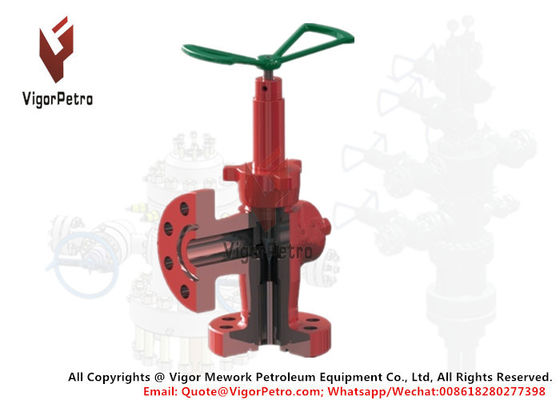

ADJUSTABLE CHOKE ASSY 4-1/16" 3000# WP FLANGE INLET AND OUTLET WITH 1" MAX ORIFICE API 6A PSL-2 PR-1 AA U

ADJUSTABLE CHOKE ASSY 4-1/16" 3000# WP FLANGE INLET AND OUTLET WITH 1" MAX ORIFICE API 6A PSL-2 PR-1 AA U

SPECIFICATION:

ADJUSTABLE CHOKE ASSEMBLY

SIZE: 4-1/16 - 3000# WP FLANGE INLET AND OUTLET
WITH 1 MAXIMUM ORIFICE (SCALE TO 64/64),
ALL EQUIPMENT SHALL BE API SPEC 6A, PSL-2, PR-1
MONOGRAMMED MATERIAL CLASS : AA,
TEMPERATURE CLASS : U (0 - 250 DEG F), R-37 RING JOINT

DATASHEET:

• Nominal diameter: 4-1/16" (2.1/16” ~ 7.1/16” Available)

• Max orifice:1" (1"-3" Available)

• Working pressure: 3000PSI (2000 PSI ~ 20000 PSI Available)

• Working media: oil, natural gas, mud, Water, H2S, CO2

• Working temperature: P-U (LU, KU, PX Available)

• Material grades: AA (AA, BB, CC, DD, EE, FF, HH Available)

• Specification level: PSL2 (PLS1 ~ PSL4 Available)

• Performance level: PR1 (PR1 ~ PR2 Available)

• End Connection: Flanged (Threaded, Hammer Union Available)

• Standards: API Spec 6A, API 16C, NACE MR0175

• Application: Wellhead Christmas Tree, Choke and Kill Manifolds, High Pressure Pipelines etc.

Features

• Integral and forged valve body with qualified mechanical properties

• Long life and low maintenance

• Body to bonnet contact behind the O-ring seal eliminates bonnet seal extrusion

• A locking device is set on stem

• Ideal for many flow regulating services and easily converted to a positive choke

• The stem of adjustable choke is made of high strength alloy steel. The material has the feature of abrasion resistance, erosion resistance and reliable serviceability

• The valve and seat can be removed by hand, without special tools and without removal of the valve body from the line, by simply removing the bonnet

• Drive has manual, hydraulic and gear transmission forms

• Connections have flange, thread and hub
