ADAPTER SPOOL 18 ¾” 15K. X 13 5/8” 10K. 0.90MTS. (H2S SERVICES)

China ADAPTER SPOOL 18 ¾” 15K. X 13 5/8” 10K. 0.90MTS. (H2S SERVICES) supplier
ADAPTER SPOOL 18 ¾” 15K. X 13 5/8” 10K. 0.90MTS. (H2S SERVICES) supplier ADAPTER SPOOL 18 ¾” 15K. X 13 5/8” 10K. 0.90MTS. (H2S SERVICES) supplier

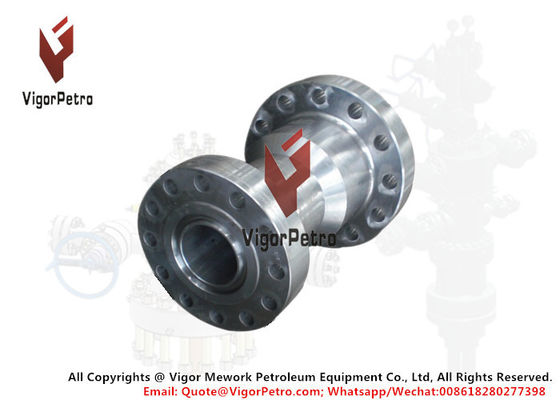

Large Image :  ADAPTER SPOOL 18 ¾” 15K. X 13 5/8” 10K. 0.90MTS. (H2S SERVICES)

Product Details:

Place of Origin: P.R.CHINA
Brand Name: VigorPetro
Certification: API 6A
Model Number: Adapter Spool Flange

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pc
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 10-20 Days
Payment Terms: T/T
Supply Ability: 100PCS/MONTH
Contact Now
Detailed Product Description
Top Size: 18-3/4“ 15000psi Bottom Size: 13-5/8" 10000psi
Pressure Rating: 15000psi Material Class: DD AISI 4130 Alloy Steel
Temp Class: Ku PSL: Psl3
PR: PR1, PR2 Overall Length: 0.9 Meters (Customized Length)
Std: API Spec 6A

Adapter Spool 18-3/4" 15000PSI X 13-5/8" 10000PSI, 0.9 Meters Long, H2s TService,



ADAPTER SPOOL 18 ¾” 15K. X 13 5/8” 10K. 0.90MTS. (H2S SERVICES)



Specifiactions: ADAPTER SPOOL SIZE 18-3/4" 115M X 13-5"8 10M x 0.9 METERS LONG H2S TRIM WITH CERTIFICATE AS PER API-6A, Alloy 625 inlayed Ring grooves are available.



API 6A Wellhead Adapter Spool Flange



Adapter Spool / Adapter Flange is designed and manufactured as per API 6A standard to connect with different drilling equipment. It may be single piece forged or welded construction which has end connections of different sizes, pressure ratings and/or designs.  Each spool is pressure tested and drift tested prior to dispatch.



The Spool Body and end connections are manufactured from low alloy steel like AISI 4130 or 410SS stainless steel. Application of Weld Overlay with AISI 316L or Nickel alloy 625 on ring Groove or all wetted surface enhance the corrosion resistance ability and improve the product life. Lifting pad-eye or lifting lug is well capable of handling the weight of the spool

ADAPTER SPOOL 18 ¾” 15K. X 13 5/8” 10K. 0.90MTS. (H2S SERVICES)ADAPTER SPOOL 18 ¾” 15K. X 13 5/8” 10K. 0.90MTS. (H2S SERVICES)

Vigor Mework Petroleum Equipment Co., Ltd - VigorPetro designs and manufactures adapter spool (cross over spool) in various sizes from 1-13/16" to 26-3/4" and rated working pressure up to 20000PSI. Customizable Adapter spools are availiable.



Features:

♦ VigorPetro's Adapter Spools have all sizes and pressure ratings used for oilfield applications.

♦ Integral forged material ensures excellent reliable working performance.

♦ Stainless Steel 316L or Inconel 625 corrosion resistant alloy ring grooves are also available.

♦ stocked forging for normal size ensure the shortest delivery time.



Specifications:

Product Name: Adapter Spool, Adapter Flange

Size: 1-13/16" - 26-3/4" or customized

Overall Length(OAL)/Height: As per customers' requirements

Connection: API 6A Flange, API 16A Clamp, WECO Union

Standards: API Spec 6A

Rated Working Pressure: 2000 PSI to 20000 PSI

Material Class: AA, BB, CC, DD, EE, FF, HH

Temp Class: PU, LU, KU, PX

Performance Requirement: PR1, PR2

Product Specification Level: PSL1, PSL2, PSL3

Application: Wellhead Assembly, Choke Manifold, Kill Manifold, Blowout Preventer



Vigor Mework Petroleum Equipment Co., Ltd - VigorPetro is a professional manufacturer of API 6A Wellhead & Christmas Trees, API6A Gate Valves, API 6A Flanges, API 16A Blowout Preventers, API 16C Choke & Kill Manifolds etc. Aside from the Adapter Spool, we also produce and sell Companion Flange, Threaded Flanges, Spacer Spool Flanges, DSA Flanges, Blind Flanges, Target Flanges, Test Flanges and for all client needs.
